0.438” Pole Line Hardwares

 China 0.438” Pole Line Hardwares supplier

0.438” Pole Line Hardwares image

Get a Quote Email to us

Brand Name :
Geto Telecom

Model Number :
S1520AGP/S1530AGP

Certification :
ISO 9001: 2015

Place of Origin :
China

MOQ :
100 Sets

Price :
7

Payment Terms :
L/C, T/T

Supply Ability :
100 PCS/Day

Delivery Time :
15 days

Packaging Details :
Carton + Woven Bag + Pallet

Name :
OVERHEAD PRIMARY TAPS

Material :
H.D.G Steel

Application :
A

Weight :
0.245KGS/ 0.33KGS

Standard or Nonstandard :
Standard

Customade :
Available

Status :
New

Range :
Main: 0.414 – 0.128 inch Tap: 0.438 – 0.128

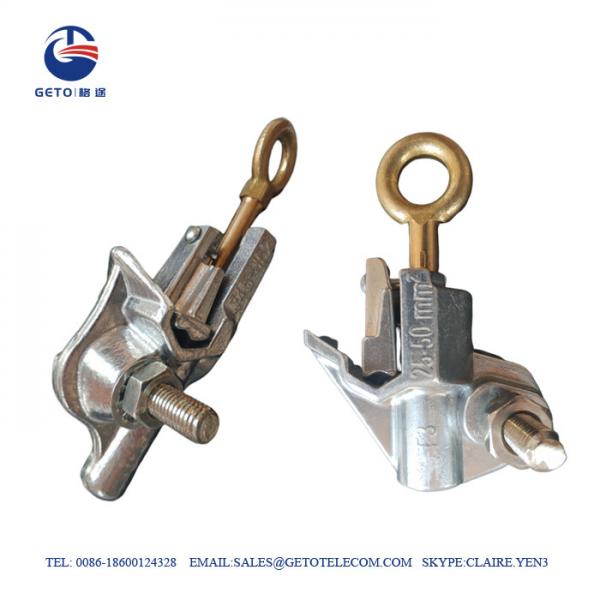

Aluminum Overhead Primary Taps Hot Line Tap Clamps

Overview

ALUMINUM OVERHEAD PRIMARY TAPS are cast with high conductivity aluminum alloy compatible with any aluminum of aluminum covered conductor. An endorsed compression spring on the eye srew thread in clamp run provided vibration resistant connection

Feature

1- Brass and aluminum alloy castings offer high strength, corrosion-resistance and conductor compatibility
2-Extended jaw width means excellent conductor contact, reduced joint temperature, minimal conductor cold flow and reduced twisting of the conductor during installation
3-Spring loaded feature compensates for cold flow and offsets tightening torque vibrations
4-Forged eyebolts provide corrosion free strength and uniformed expansion under loading
5-The side positioned tap connection prevents possible corrosion of conductor or clamp on bimetal connections

Article Tap of Connector Main Line Range Tap Line Range Recommended Torque
No Main Tap Diameter Inch Diameter Inch Eyescrew Terminal
S1520APG Al Al 0.414-0.128 0.438-0.128 180 in-lb. 180 in.-lb.
S1530APG

Al

AL

0.745-0.162 0.547-0.162 200 in.-lb. 250 in.-lb.
Part Name Qty Material
Body 1 Al-alloy
Keeper 1 Al-alloy
Tap Eye Bolt 1 Brass tin plate
Eye Screw 1 Brass
Spring Washer 1 Stainless

Application

Our service

1, Product consulting service
2, Cost-saving advice

3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service

Contact us

Email: [email protected]
Whatsapp/Tel: 86-18600124328
Web: www.getotelecom.com

Company



















































We are China 0.438” Pole Line Hardwares manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
