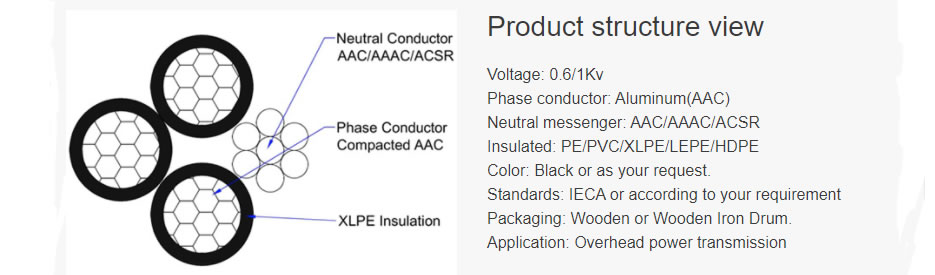

Quadruplex Service Drop Cable Specifications:
Get all the answers to the most frequently asked questions (FAQs) regarding Quadruplex Service Drop Cable chart,Quadruplex Service Drop Cable sizes,Quadruplex Service Drop Cable full form,Quadruplex Service Drop Cable ampacity,Quadruplex Service Drop Cable diameter and much, much more.
Triplex Service Drop Cable manufactured by GE Cable meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
| Code Word | AAC Phase Conductor | AAC Neutral Messenger | Weight | Ampacity |
| Code | AWG or Kcmil | No of Strands | Insulation thickness(Mils) | AWG or Kcmil | No of Strands | Breaking Strength(Lbs) | Pe(Lbs/Mft) | Xlpe(Lbs/Mft) | Pe(70°C) | Xlpe(90°C) |
| Haiotis | 6 | 1 | 45 | 6 | 7 | 563 | 100.6 | 103.8 | 59 | 69 |
| Petella | 6 | 7 | 45 | 6 | 7 | 563 | 107.8 | 111.7 | 59 | |
| Fusus | 4 | 1 | 45 | 4 | 7 | 881 | 149.4 | 153.2 | 78 | 91 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 159 | 163.9 | 78 | |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 239.7 | 245.9 | 106 | 123 |
| Snail | 1/0 | 7 | 60 | 1/0 | 7 | 1350 | 387 | 397.6 | 143 | 167 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 387 | 397.6 | 143 | |
| Purpura | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 382.4 | 392.4 | 143 | |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 476.7 | 488.6 | 165 | 193 |
| Trophon | 2/0 | 19 | 60 | 2/0 | 7 | 2510 | 470.9 | 482.1 | 165 | |
| Melita | 3/0 | 19 | 60 | 3/0 | 19 | 3310 | 581.3 | 593.9 | 192 | 224 |
| Portunus | 4/0 | 19 | 60 | 4/0 | 19 | 4020 | 719.4 | 733.7 | 224 | 262 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 1161.7 | 1185.5 | 295 | 345 |
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 ft.(Ibs.) | Allowable Ampacities+ |
| Code | Size (AWG or kcmil) | Strand-ing | Insul. Thick. (mils) | Size (AWG or kcmil) | Strand-ing | Rated Strength (Ibs). | XLP | POLY | XLP | POLY |
| Morochuca | 6 | 1 | 45 | 6 | 6/1 | 1190 | 145 | 145 | 75 | 60 |
| Chola | 6 | 7 | 45 | 6 | 6/1 | 1190 | 153 | 153 | 75 | 60 |
| Morgan | 4 | 1 | 45 | 4 | 6/1 | 1860 | 217 | 217 | 100 | 80 |
| Hackney | 4 | 7 | 45 | 4 | 6/1 | 1860 | 229 | 229 | 100 | 80 |
| Palomino | 2 | 7 | 45 | 2 | 6/1 | 2850 | 347 | 347 | 135 | 105 |
| Costena | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 549 | 549 | 180 | 140 |
| Grullo | 2/0 | 11 | 60 | 2/0 | 6/1 | 5310 | 677 | 677 | 205 | 160 |
| Suffolk | 3/0 | 17 | 60 | 3/0 | 6/1 | 6620 | 837 | 837 | 235 | 185 |
| Appaloosa | 4/0 | 18 | 60 | 4/0 | 6/1 | 8350 | 1038 | 1038 | 275 | 210 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 6/1 | 8350 | 1494 | 1494 | 370 | 280 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 18/1 | 8680 | 1568 | 1568 | 370 | 280 |
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight | Allowable |
| Code | Size(AWG or kcmil) | Stranding | Insul. Thick. (mils) | Equiv. Dia. (AWG)++ | Size++ (kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY |
| Bay | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 137 | 137 | 75 | 60 |
| French Coach | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 146 | 146 | 75 | 60 |
| German Coach | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 205 | 205 | 100 | 80 |
| Arabian | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 217 | 217 | 100 | 80 |
| Belgian | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 328 | 328 | 135 | 105 |
| Shetland | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 519 | 519 | 180 | 140 |
| Thoroughbred | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 639 | 639 | 205 | 160 |
| Trotter | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 789 | 789 | 235 | 185 |
| Walking | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 977 | 977 | 275 | 210 |

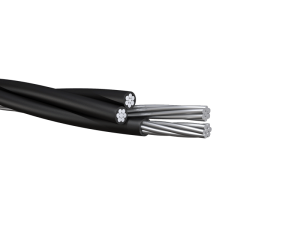

Quadruplex Service Drop Cable
