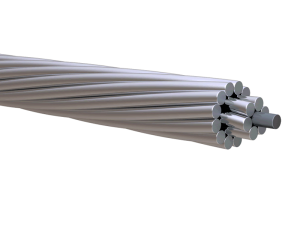

ACSR/AW Aluminum Conductor Aluminum Clad Steel ReinforcedACSR/AW Aluminum Conductor Aluminum Clad Steel Reinforced

Overview

DESCRIPTION
Aluminium Conductors, Aluminium Clad Steel Reinforced (ACSR/AS or ACSR/AW) are c concentrically stranded conductors with one or more layers of hard drawn 1350-H19 aluminium wires on Aluminium Clad steel wire core. The core can be single wire or stranded depending on the size.
ACSR/AW is preferred over conventional ACSR because of its higher corrosion resistance, lighter weight, longer service life, and reduced power loss.
APPLICATION

Overhead transmission and distribution lines Medium, High and Extra High Voltage. Specially recommended in, crossings, or where a very high tensile strength is needed.
STANDARD
ASTM B230 B502 B549, AS3607, GB/T1179

Get a Quote Email to us

CONSTRUCTION

Aluminum 1350-H19 wires, concentrically stranded around aluminum-clad steel core.

ADDITIONAL STANDARDS

IEC, BS, ASTM, CAN-CSA, DIN, IS, AS and relevant national and international standards.

ACSR/AW Conductor Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding ACSR/AW Conductor chart,ACSR/AW Conductor sizes,ACSR/AW Conductor full form,ACSR/AW Conductor ampacity,ACSR/AW Conductor diameter ,ACSR/AW Conductor manufacturers and much, much more.

ACSR/AW manufactured by GE Cable meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc


Few More thing you should know

What’s ACSR/AW Conductor meaning?

ACSR/AW is composed out of 1350-H19 aluminum wires surrounding an aluminum clad steel core.

What’s The Specification Data of ACSR/AW?

ACSR/AW meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-502 Aluminum-Clad Steel Core Wire for Aluminum Conductors, Aluminum-Clad Steel Reinforced.
• B-549 Aluminum Conductors, Concentric-Lay-Stranded, Aluminum-Clad Steel Reinforced (ACSR/AW).

What’s The Features of AACSR Conductor?

good mechanical properties.
improved electrical characteristics.
excellent corrosion resistance.
better Sag properties.
