ACSS/TW – Aluminum Conductor Steel Supported-Trapezoidal WireACSS/TW – Aluminum Conductor Steel Supported-Trapezoidal Wire

Overview

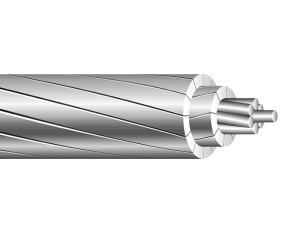

Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductor, Steel-Supported (ACSS/TW) is a concentrically stranded conductor with one or more layers of trapezoidal shaped hard drawn and annealed 1350-0 aluminum wires on a central core of steel. ACSS/TW can either be designed to have an equal aluminum cross sectional area as that of a standard ACSS which results in a smaller conductor diameter maintaining the same ampacity level but reduced wind loading parameters or with diameter equal to that of a standard ACSS which results in a significantly higher aluminum area, lower conductor resistance and increased current rating.

APPLICATION

ACSS/TW is designed for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength, it sags less under emergency electrical loadings than ACSR/TW, excellent self-damping properties, and its final sags are not affected by long-term creep of aluminum. ACSS/TW is available in equal area and equal diameter design. The equal area design allows equal ampacity in a smaller diameter conductor when compared with a standard ACSS conductor. The equal diameter design allows more ampacity in an equal diameter conductor when compared with a standard ACSS conductor. ACSS/TW also provides many design opportunities for new line construction: i.e., reduced tower cost, decreased sag, increased self-damping properties,increased operating temperature and improved corrosion resistance.

Get a Quote Email to us

CONSTRUCTION

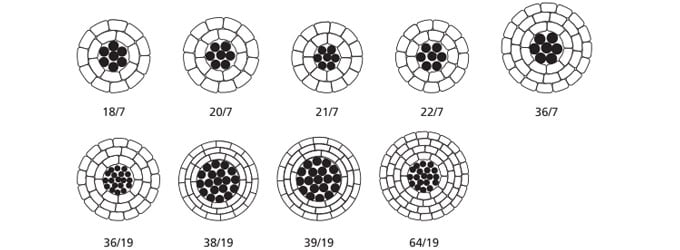

ACSS is a composite concentric-lay-stranded conductor. Steel strands form the central core of the conductor with one or more layers of 63% minimum average conductivity aluminum 1350-0 wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the “0” (fully annealed or soft) temper aluminum. Steel core wires are protected from corrosion by Galfan® , zinc-5% aluminum-mischmetal alloy coating. High strength steel core, aluminized, and aluminum clad steel core is also available.

ADDITIONAL STANDARDS

ACSS/TW conductor meets or exceeds the following ASTM specifications:
• B500 – Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced.
• B609 – Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
• B802 – Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.
• B803 – High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and Aluminum-Alloy Conductors, Steel Reinforced.
• B857 – Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Supported (ACSS/TW).

ACSS/TW Conductor Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding ACSS/TW Conductor chart,ACSS/TW Conductor data sheet,ACSS/TW Conductor sizes,ACSS/TW Conductor full form,ACSS/TW Conductor ampacity,ACSS/TW Conductor diameter,ACSS/TW Conductor manufacturers and much, much more.

ACSS/TW manufactured by GE Cable meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
