0.6/1kV 300mm2 XLPE Insulated Power Cables used for Electricity Power Transmission

 China 0.6/1kV 300mm2 XLPE Insulated Power Cables used for Electricity Power Transmission supplier

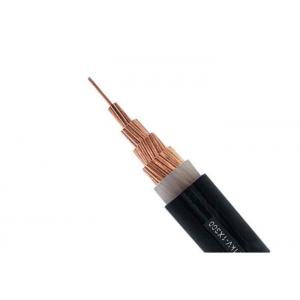

0.6/1kV 300mm2 XLPE Insulated Power Cables used for Electricity Power Transmission image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :CU/XLPE/PVC-6/10KV
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :Shanghai, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :10 Days
Packaging Details :Wooden Drum
Filler :Polypropylene
Test Voltage :3.5KV/5mins
Cable Sample :Available
Jacket :PVC
Insulation :Cross-Linked XLPE
Conductor :Annealed Copper

0.6/1kV 300mm2 XLPE Insulated Power Cables used for Electricity Power Transmission

XLPE insulated power cable are used as electricity power transmission lines which applies common circumstances as below:

  • Mainly used for transmitting electricity power or used as control cable.
  • Common operating temperature up to 90°C (emergency at 130°C and short circuit 250°C), both wet or dry location.
  • Voltage rate 600/1Kv.
  • Suits for main or secondary power lines of overhead (aerial) installations, direct burial underground or in dust.
  • Cable trunking, cable tray, cable ladder, in tunnel or wire pipe and in switchgear and other complex operating environment.
  • Works perfectly after metallic sheath (metal especially aluminum clad) or metal wire armored ( especially steel wire armored – SWA) when isolation of electromagnetic effects, anti-interference, anti-jamming and additional strength are required.

Specifications

Nom. section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ℃ ) Testing Voltage A.C Current Rating
mm2 mm mm mm Kg/km Ω /km KV/5min In air (A) In soil(A)
1 × 1.5 0.7 1.5 6 53 12.1 3.5 26 33
1 × 2.5 0.7 1.5 6 68 7.41 3.5 34 43
1 × 4 0.7 1.5 7 87 4.61 3.5 44 56
1 × 6 0.7 1.5 7 110 3.08 3.5 56 70
1 × 10 0.7 1.5 8.2 155 1.83 3.5 77 94
1 × 16 0.7 1.5 9.2 220 1.15 3.5 100 120
1 × 25 0.9 1.5 10.6 345 0.727 3.5 130 155
1 × 35 0.9 1.5 11.6 424 0.524 3.5 160 185
1 × 50 1.0 1.5 12.7 555 0.387 3.5 195 220
1 × 70 1.1 1.5 14.7 770 0.268 3.5 245 270
1 × 95 1.1 1.5 16.1 1040 0.193 3.5 300 320
1 × 120 1.2 1.5 17.8 1290 0.153 3.5 350 365
1 × 150 1.4 1.6 19.8 1590 0.124 3.5 400 410
1 × 185 1.6 1.6 21.8 1944 0.0991 3.5 465 465
1 × 240 1.7 1.7 24.4 2510 0.0754 3.5 550 540
1 × 300 1.8 1.8 26.7 3042 0.0601 3.5 635 610
1 × 400 2.0 1.9 30.6 3869 0.0470 3.5 745 695
1 × 500 2.2 2.1 34.5 4910 0.0366 3.5 860 780
1 × 630 2.4 2.2 39.5 6220 0.0283 3.5 990 880
1 × 800 2.6 2.4 45.2 7870 0.0221 3.5 1120 970
1 × 1000 2.8 2.6 50.4 9804 0.0176 3.5 1260 1060

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.













We are China 0.6/1kV 300mm2 XLPE Insulated Power Cables used for Electricity Power Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
