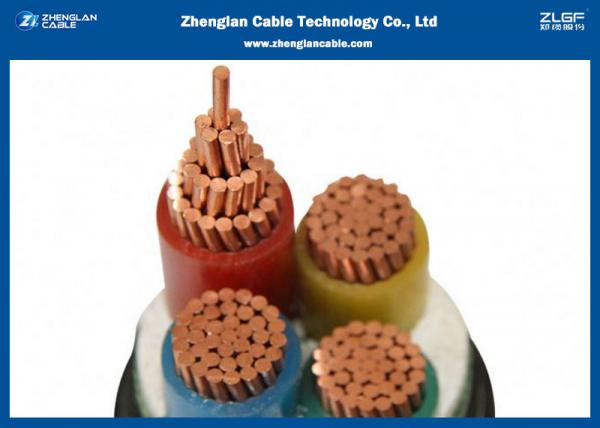

0.6/1KV 4 Core 75sqmm Low Smoke Zero Halogen Cables Armoured Copper XLPE

 China 0.6/1KV 4 Core 75sqmm Low Smoke Zero Halogen Cables Armoured Copper XLPE supplier

0.6/1KV 4 Core 75sqmm Low Smoke Zero Halogen Cables Armoured Copper XLPE image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
LSZH (Low Smoke Zero Halogen) Power Cables

Certification :
ISO9001,CCC, CE, Etc

Place of Origin :
Henan, China

MOQ :
1000 meters

Price :
Negotiation

Payment Terms :
L/C, T/T, , Western Union

Supply Ability :
Negotiation

Delivery Time :
5 -15 days

Packaging Details :
fully wooden drum, steel wooden drum, fully steel drum or customized

Jacket :
LSZH (Low Smoke Zero Halogen) Type

Insulation Material :
XLPE

Size :
1.5~1000mm2

Type :
Low Voltage

Number of cores :
1-5 cores

Rated voltage :
0.6/1KV

Conductor Material :
Copper

Application :
Construction

Armour :
SWA,STA or Unarmour

Port :
Shanghai or Qingdao

Origin :
China

3 core 4 core 5 core XLPE insulated low voltage steel wire armoured LSZH copper power cable

1.Quick Details:
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Certificates: ISO9001,CCC, CE, etc
Insulation Material: polyolefin
Type: Low Voltage
Application: Construction
Conductor Material: Copper
Jacket: LSZH (Low Smoke Zero Halogen) Type
Sizes: 1.5~1000mm2
Sheath: Low-Smoke Halogen-Free
Number of cores: 5 for low voltage
Rated voltage: 0.6/1KVPackaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Characteristics:
Voltage Rating (Uo/U) 600/1000V
Temperature Rating Fixed installation: -20°C to +90°C
Minimum Bending Radius
1.5mm2 to 16mm2 – Fixed: 6 x overall diameter
25mm2 and above – Fixed: 8 x overall diameter

Application;
Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Model Description
YJV(YJLV) Copper(Aluminum) core XLPE insulated PVC sheathed power cable
YJV22(YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and PVC sheathed power cable
YJV32(YJLV32) Copper(Aluminum) core XLPE insulated steel wire armoured and PVC sheathed power cable
ZR-YJV(ZR-YJLV) Copper(Aluminum) core XLPE insulated flame retardant PVC sheathed power cable
ZR-YJV22(ZR-YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and flame retardant PVC sheathed power cable
ZR-YJV32(ZR-YJLV32) Copper(Aluminum) core XLPE insulated steel wire armoured and flame retardant PVC sheathed power cable

About Zhenglan Cable Technology CO., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 1000m.

We are China 0.6/1KV 4 Core 75sqmm Low Smoke Zero Halogen Cables Armoured Copper XLPE manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
