0.6/1KV AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 3Cx95sqmm 1Cx70mm2

 China 0.6/1KV AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 3Cx95sqmm 1Cx70mm2 supplier

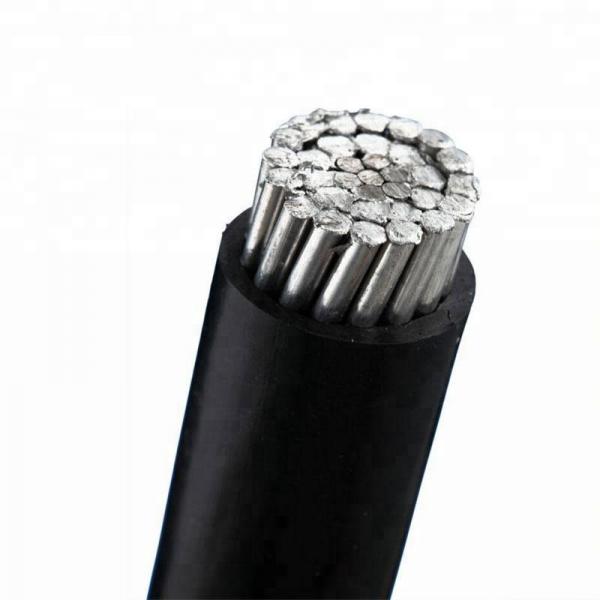

0.6/1KV AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 3Cx95sqmm 1Cx70mm2 image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
Aerial Insulated Cable 3Cx95sqmm 1Cx70mm2

Certification :
ISO 9001:2015,ISO 14001:2005

Place of Origin :
Henan, China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
16,000 KM/Year

Delivery Time :
5-15days

Packaging Details :
Wooden drum, iron wooden drum or as required

structure :
AAC/XLPE+AAAC/XLPE

Phase cable Conductor :
AAC

Insulation Material :
XLPE

Neutral cable conductor :
AAAC

Neutral cable insulation :
XLPE

Voltage :
0.6/1KV

Application :
Overhead transmission use

Quality :
100% test

Standard :
IEC 60502-1

Port :
Qingdao OR Shanghai

Origin :
China

0.6/1KV AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 3Cx95sqmm 1Cx70mm2

1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Application:
For aerial reticulating to residential, rural and uncleared areas where reliability, safety and low installation costs
are required.
Other benefits include: Reduction of bushfire hazards and frequency of tree lopping.

1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC – All Alloy Aluminium 6201 – XLPE.

1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Main characteristics:
Decreases energy theft, cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Increased safety due to its mechanical strength and toughness of the insulation. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.

Core identification:

Phase core identificated by number 1, 2, 3 or ribs

Neutral core identificated by company name, model&size, voltage, meter mark infor or by full ribs as per requirement

1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)​ parameters

CAAI 0,6/1 kV AAAC Covered Neutral with Public Lighting
Nb. of cores Phase Cond. Cross Section [mm²]
aluminium wires
Phase Cond. Diam. [mm] Min. insulation thick. [mm] Public lighting MIn.Insulat.Thick.Pub.Light. [mm] Neutral Cond. section [mm²] Nom. outer diam(mm) Approx. weight [kg/km]
1 16 7 5 1.14 1 x 16 1.14 25 17.2 235
2 16 7 5 1.14 1 x 16 1.14 25 18.6 303
2 25 7 5.8 1.14 1 x 16 1.14 25 22.7 358
2 25 7 5.8 1.14 2 x 16 1.14 25 22.5 425
2 35 7 6.9 1.14 1 x 16 1.14 25 24.4 420
2 35 7 6.9 1.14 1 x 35 1.14 25 24.4 448
2 35 7 6.9 1.14 2 x 16 1.14 25 24.7 488
2 50 19 8.1 1.52 1 x 25 1.14 35 29.1 583
2 50 19 8.1 1.52 2 x 16 1.14 50 30.4 688
2 70 19 9.8 1.52 1 x 25 1.14 50 34.3 786
3 16 7 5 1.14 1 x 16 1.14 25 20.6 370
3 25 7 5.8 1.14 1 x 16 1.14 25 22.7 453
3 25 7 5.8 1.14 2 x 16 1.14 25 25.6 520
3 35 7 6.9 1.14 1 x 16 1.14 25 24.4 547
3 35 7 6.9 1.14 1 x 35 1.14 25 24.4 574
3 35 7 6.9 1.14 1 x 25 1.14 25 24.7 606
3 35 7 6.9 1.14 1 x 25 1.14 35 25.7 608
3 35 7 6.9 1.14 2 x 16 1.14 25 27 614
3 35 7 6.9 1.14 2 x 25 1.14 25 27 669
3 50 19 8.1 1.52 1 x 16 1.14 35 29.1 733
3 50 19 8.1 1.52 1 x 25 1.14 35 29.1 760
3 50 19 8.1 1.52 1 x 35 1.14 35 29.1 791
3 50 19 8.1 1.52 2 x 25 1.14 35 31.7 855
3 70 19 9.8 1.52 1 x 16 1.14 50 34.3 1005
3 70 19 9.8 1.52 2 x 25 1.14 50 37.9 1127
3 95 19 11.5 1.52 1 x 16 1.14 50 37.2 1252
3 95 19 11.5 1.52 1 x 16 1.14 50 40.3 1319
3 95 19 11.5 1.52 1 x 16 1.14 70 38.9 1319
3 95 19 11.5 1.52 2 x 25 1.14 50 40.3 1374
3 120 19 12.8 2.03 1 x 25 1.14 50 41.0 1565
3 120 19 12.8 2.03 1 x 35 1.14 50 41.0 1596
3 120 19 12.8 2.03 1 x 16 1.14 70 42.7 1604
3 120 19 12.8 2.03 2 x 16 1.14 70 46.1 1672
3 120 19 12.8 2.03 2 x 50 1.52 70 46.1 1733
3 120 19 12.9 2.03 2 x 25 1.14 70 46.1 1890

Company introduction

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.

We are China 0.6/1KV AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 3Cx95sqmm 1Cx70mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
