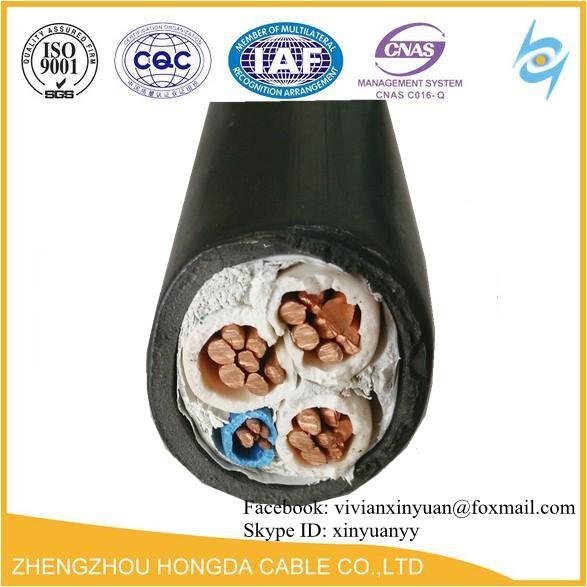

0.6 1kV LV XLPE PVC Insulated Power Cables with Copper or Aluminum conductor for power distribution and transmission

0.6 1kV LV XLPE PVC Insulated Power Cables with Copper or Aluminum conductor for power distribution and transmission image

Get a Quote Email to us

Brand Name :
Hongda

Model Number :
Control Cable

Certification :
ISO, CCC

Place of Origin :
Henan, China (mainland)

MOQ :
500 meters

Price :
USD 1.5~50 per meter

Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram

Supply Ability :
30000km per month

Delivery Time :
10-15 working days

Packaging Details :
export drums, metal drum, or according to your requires

Conductor Material :
Copper / Aluminum

Jacket / Outer Sheath :
PVC / PE

Sheath color :
Black or as per requirement

Rated voltage :
0.6/1KV

Insulation thickness :
0.7-1.8mm

Test Voltage :
3.5kv

Size :
1.5 – 800 sqmm

Type :
Low Voltage

Insulation :
XLPE

Application :
power distribution and transmission

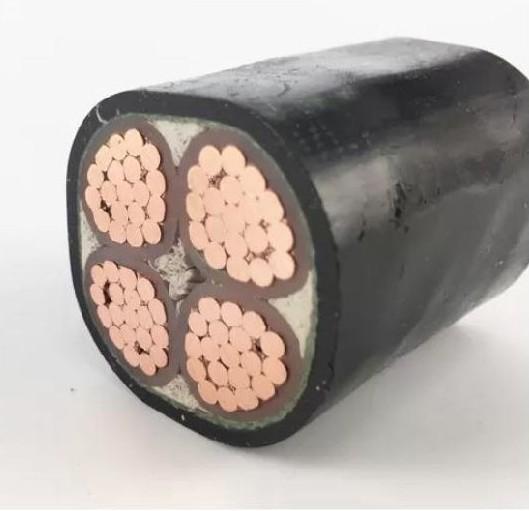

0.6/1kV XLPE Insulated Power Cable

please directly contact with me vivian @ hdcable.com.cn:

Vivian Yuan | Sales Director
Henan (Zhengzhou) Hongda Cable CO., LTD.
Landline: +86 371 6097 5616 | Fax: +86 371 6097 5616
Email: vivian @ hdcable.com.cn | Skype ID: xinyuanyy
Cellphone/WhatsApp/Wechat/ICQ: +86 158 3829 0725
Address: Houzhai Industrial Park, Erqi Zone, Zhengzhou, China,450000

1. Main Application

XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

2. Standards

GB/12706-2008, IEC60502,IEC 60228,IEC60332 BS 5467,BS 6622 , IS 1554 , IS 7098and ICEA S-66-524 ect.

Hongda Cable can also design and produce for special application requirement.

3. Product Properties

The product is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1 kV .

3.1 Rated voltages: 0.6/1 kV

3.2 The ambient temperature for installation: ≥0℃

3.3 Maximum conductor temperature in normal operation:≤90℃

3.4 Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃

3.5 Permissible minimum bending radius:

Single unarmoured cable: (20D±5%)mm

Multi-core unarmoured cable:(15D±5%)mm

Single armoured cable: (15D±5%)mm

Multi-core armoured cable:(12D±5%)mm

Note : D=over cable diameter

4. Product Type

Chinese Type		Description	Application
Cu	Al	Description	Application
YJV	YJLV	Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces.
YJY	YJLY	Cu conductor(Al conductor)XLPE insulated PE sheathed power cable
YJV22	YJLV22	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
YJV23	YJLV23	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable
YJV62	YJLV62	Cu conductor(Al conductor)XLPE insulated double of aluminium-tape armored PVC sheathed power cable
YJV32	YJLV32	Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force
YJV33	YJLV33	Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable
YJV72	YJLV72	Cu conductor(Al conductor)XLPE insulated aluminium-wire armored PE sheathed power cable

5. Range of production

No.of cores : 1, 2, 3+1, 4, 5 ,4+1, 3+2 Nominal cross-section (mm²):1.5-630

a,The armoring materials of single core cable should use nonmagnetic materials.

b,Our company can produce “Flame-RetardantSeries”, “Fire-Resistant Series”, “Low Smoke Halogen Free (LSHF/LSOH) Series”,“Low Smoke Low Halogen (LSLH) Series”, etc. power cable as customer required.

Performance in line with IEC60332,IEC 61034,IEC60754 requirements.

6. Construction

6.1 XLPE insulated Power Cables for rated voltages up to and including 0.6/1kV

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded

Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor

Insulation:XLPE (cross-linked polyethylene) rated at 90°C

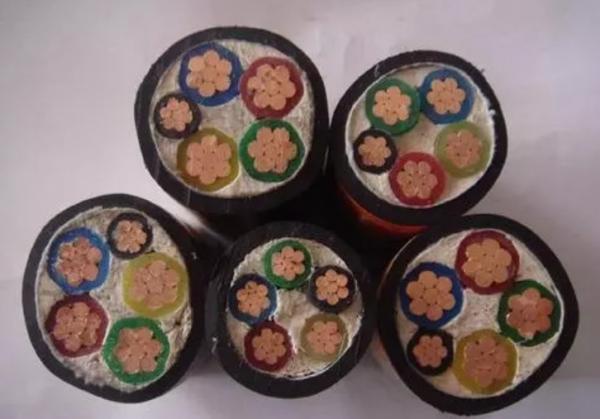

Colour identification

1 Core : Red or Black

2 Cores : Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

The above identifying can be changed as order

Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted

Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply With the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, we can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

6.2 XLPE insulated Power Cables for rated voltages up to and including 3.6-35kV

Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2

Conductor Screen:Extruded semi-conductive compound

Insulation:XLPE (cross-linked polyethylene) rated at 90°C

Insulaton Screen:Extruded semi-conductive compound

Metallic Screen:copper tape ora concentric layer of copper wires

Colour for core indentification:Red,Yellow ,Blue tape shall be applied between insulation screen and metallic screen( The above identifying can be changed as order)

Assembly : Three screened cores are laid up together ,if necessary filled with non hygroscopic material compatible with insulation and covered with a layer of PVC sheath

Inner Sheath:Extruded layer of PVC ST2 or PE , LSZH

Armour: Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable

Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH

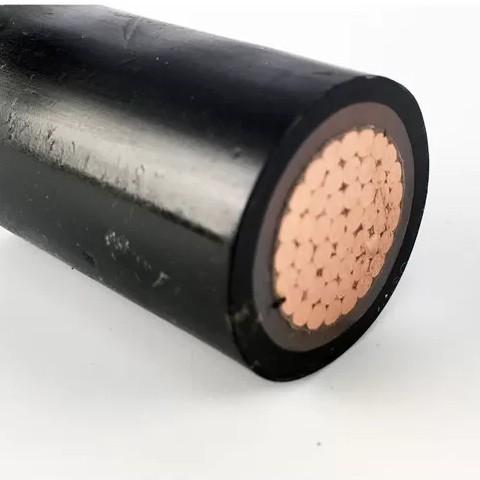

Single core, CU or AL conductor, XLPE insulated, PVC sheathed Power Cable, 0.6/1kV to IEC60502-1

Type	Specification	Outer diameter of conductor	Nominal thickness of insulation	Nominal sheath thickness	Approx.outer diameter of cable	Approx. Weight of cable		Ampacity of cable
						Approx. Weight of cable		Air		Soil
						CU	AL	Cu	Al	Cu	Al
YJV YJLV	mm²	mm	mm	mm	mm	kg/km	kg/km	A	A	A	A
	1×4 RE	2.24	0.7	1.4	6.5	73.7	49.0	45	35	60	50
	1×6 RE	2.76	0.7	1.4	7.0	95.8	58.7	55	45	70	50
	1×10 CC	3.8	0.7	1.4	8.0	140.1	78.2	75	60	95	75
	1×16 CC	4.8	0.7	1.4	9.0	201.8	102.8	100	80	125	100
	1×25 CC	6.0	0.9	1.4	10.6	298.9	144.2	140	115	160	130
	1×35 CC	7.0	0.9	1.4	11.6	396.7	180.2	175	140	190	150
	1×50 CC	8.4	1.0	1.4	13.1	543.9	234.6	210	170	225	180
	1×70 CC	10.0	1.1	1.4	15.0	744.7	311.6	270	215	280	225
	1×95 CC	11.5	1.1	1.5	16.6	985.6	397.8	340	275	335	270
	1×120 CC	13.0	1.2	1.5	18.4	1233.0	490.6	400	320	380	305
	1×150 CC	14.5	1.4	1.6	20.5	1533.8	605.8	460	370	425	340
	1×185 CC	16.2	1.6	1.6	22.7	1884.9	740.3	530	415	480	375
	1×240 CC	18.4	1.7	1.7	25.3	2418.0	933.1	625	490	555	435
	1×300 CC	20.5	1.8	1.8	27.7	2996.5	1140.4	720	565	630	495
	1×400 CC	23.5	2.0	1.9	31.4	3962.3	1487.5	815	640	705	555
	1×500 CC	26.5	2.2	2.0	35.0	4933.0	1839.5	855	680	765	595
	1×630 CC	30.0	2.4	2.2	39.1	6188.8	2291.0	980	790	860	680

Note:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded

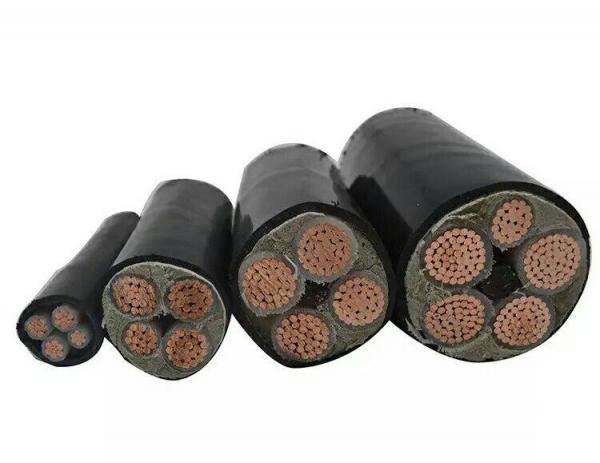

0.6/1kV PVC Insulated Power Cable

1. Main Application

PVC insulated cables are used for power distribution and transmission, building, appliance, flexible cord and machine tool. Insulation and jackets made from PVC which has a number of desirable properties inculding flexibility, resistance to temperature, resistance to adverse environmental situations and low cost.

2. Standards

GB/12706-2008, IEC60502, IEC 60228,IEC60332,BS 6004, AS/NZS 5000.1 ect.

Hongda cable can also design and produce for special application requirement.

3. Product Properties

3.2 The ambient temperature for installation: ≥0℃

3.3 Maximum conductor temperature in normal operation:≤70℃

3.4 Max operating temperature of con. When cable short-circuited(5s maximum duration): 160℃

3.5 Permissible minimum bending radius:

Single unarmoured cable: (20D±5%)mm

Multi-core unarmoured cable:(15D±5%)mm

Single armoured cable: (15D±5%)mm

Multi-core armoured cable:(12D±5%)mm

Note : D=over cable diameter

4. Product Type

Chinese Type		Designation	Application
Cu	Al	Designation	Application
VV	VLV	Cu conductor(Al conductor)PVC insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces.
VY	VLY	Cu conductor(Al conductor)PVC insulated PE sheathed power cable
VV22	VLV22	Cu conductor(Al conductor)PVC insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
VV23	VLV23	Cu conductor(Al conductor)PVC insulated double of steel-tape armored PE sheathed power cable
VV32	VLV32	Cu conductor(Al conductor)PVC insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.
VV33	VLV33	Cu conductor(Al conductor)PVC insulated steel-wire armored PE sheathed power cable

Note: Hongda Cable can produce “Flame-RetardantSeries”, “Fire-Resistant Series”, “Low Smoke Halogen Free (LSHF/LSOH) Series”,“Low Smoke Low Halogen (LSLH) Series”, etc. power cable as customer required.

Performance in line with IEC60332,IEC 61034,IEC60754 requirements.

5. Construction

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded

Conductor: Plain circular ,compacted or shaped stranded copper or aluminium conductor ,conform to IEC60228 CLass 1 or 2

Insulation:PVC Compound Insulation

Colour identification :

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numbers

The above identifying can be changed as order

Bedding /Inner Sheath :PVC Compound

Armour:Aluminium wire, Galvanized steel wire or Steel tape

Outer Sheath:PVC or PE Compound

6. Range of Production

Chinese Type		No. of cores	Rated Voltage 0.6/1kV
Cu	Al		Nominal cross-section (mm²)
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	1	1.5～630
			1.5～630
			1.5～630
			1.5～630
			1.5～630
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	2	1.5～400
			1.5～400
			1.5～400
			1.5～400
			1.5～400
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	3	1.5～400
			1.5～400
			1.5～400
			1.5～400
			1.5～400
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	4 3+1	1.5～400
			1.5～400
			1.5～400
			1.5～400
			1.5～400
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	5 4+1 3+2	1.5～400
			1.5～400
			1.5～400
			1.5～400
			1.5～400

Note: The armored material of single core cable should be non-magnetic or magnetic reduced structure. Generallly, single core armored cable (which uses steel or steel wire armored cable) only applies to DC occasions.

7. Product Parameters

Copper or Aluminium Conductor PVC Insulated PVC Sheathed Unarmoured Power Cables For rated voltage up to and including 0.6/1kV

Table Single-core, CU or AL conductor, PVC insulated, Unarmored, PVC sheathed Power Cable, 0.6/1kV to IEC 60502-1

Type

Nominal section area

mm²

Conductor diameter

Nominal thickness of insulation

Nominal sheath thickness

Approx. overall diameter

Approx.weight of cable

kg/km

Maximum DC resistance of the conductor

Ω/km

20℃Cu

20℃Al

VLV

1×1.5 RE

1×2.5 RE

1×4 RE

1×6 RE

1×10 CC

1.38

1.78

2.24

2.76

3.8

0.8
