0.6/1kv PVC/PE/XLPE Insulated ABC Cable Wire IEC Standard

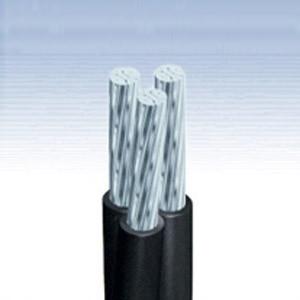

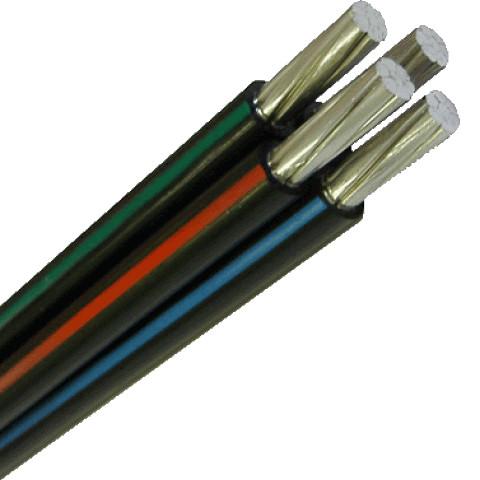

0.6/1kv PVC/PE/XLPE Insulated ABC Cable Wire IEC Standard image
Place of Origin :
China
Brand Name :
Sino
Model Number :
ABC
MOQ :
1000 meters
Packaging Details :
Wooden Drum/Iron Drum/As required.
Delivery Time :
10~30 days as per order
Payment Terms :
TT
Supply Ability :
2000 Kilometers per Month
Insulation Material :
PE/XLPE/PVC
Type :
Low Voltage
Application :
Overhead
Conductor Material :
Aluminum
Jacket :
NO
Certification :
ISO,CCC
0.6/1kv PVC/PE/XLPE Insulated ABC Cable Wire IEC Standard
1. Application of Aerial Bundle Cable :
Aerial Bundle Cable are used for electric power tranmission, extensively used for rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
2. Types of Aerial Bundle Cable
Two core(Duplex Service Drop)
Three core(Triplex Service Drop)
Four core(Quadruplex Service Drop)
ABC cable can be produced as construction is phase conductor with neutral/insulated bare conductor.Our factory can produce the cables OEM
3. Construction of Aerial Bundle Cable :
Rated voltage 0.6/1kv
Phase conductor : Aluminium conductor
Insulation : PVC or PE or XLPE
Neutral Bare Conductor: AAC , ACSR , AAAC .
4. Structure and Specification http://www.electriccablechina.com [email protected]
|
Code Name |
Phase Conductor |
Bare Neutral Messenger |
Weight Per 1000ft (lbs) |
Ampacity(amps) |
||||||
|
Size AWG |
Stranding |
Insulation Thickness(mls) |
Size AWG |
Stranding |
Breaking Strength(lbs) |
XLPE |
Poly |
XLPE |
Poly |
|
|
6201 ALLOY NEUTRAL-MESSENGER |
||||||||||
|
Minex |
6 |
Solid |
45 |
6 |
7 |
1,110 |
106.6 |
102.9 |
85 |
70 |
|
Hippa |
6 |
7 |
45 |
6 |
7 |
1,110 |
113.2 |
105.7 |
85 |
70 |
|
Prawn |
4 |
Solid |
45 |
4 |
7 |
1,760 |
158.4 |
154.1 |
115 |
90 |
|
Barnacles |
4 |
7 |
45 |
4 |
7 |
1,760 |
168.3 |
158.2 |
115 |
90 |
|
Shrimp |
2 |
7 |
45 |
2 |
7 |
2,800 |
253.7 |
239.7 |
150 |
120 |
|
Gammarus |
1/0 |
7 |
60 |
1/0 |
7 |
4,460 |
411.7 |
386.0 |
205 |
160 |
|
Leda |
1/0 |
19 |
60 |
1/0 |
7 |
4,460 |
402.7 |
386.0 |
205 |
160 |
|
Dungenese |
2/0 |
7 |
60 |
2/0 |
7 |
5,390 |
506.8 |
476.3 |
235 |
185 |
|
Cyclops |
2/0 |
19 |
60 |
2/0 |
7 |
5,390 |
495.3 |
476.3 |
235 |
185 |
|
Dlustra |
3/0 |
19 |
60 |
3/0 |
7 |
6,790 |
611.4 |
589.1 |
275 |
215 |
|
Lepas |
4/0 |
19 |
60 |
4/0 |
7 |
8,560 |
757.1 |
730.5 |
315 |
245 |
|
6201 ALLOY REDUCED NEUTRAL-MESSENGER |
||||||||||
|
Artemia |
4 |
Solid |
45 |
6 |
7 |
1,110 |
141.4 |
137.1 |
115 |
90 |
|
Crab |
4 |
7 |
45 |
6 |
7 |
1,110 |
151.3 |
141.2 |
115 |
90 |
|
Solaster |
2 |
7 |
45 |
4 |
7 |
1,760 |
226.6 |
212.6 |
150 |
120 |
|
Sandcrab |
1/0 |
7 |
60 |
2 |
7 |
2,800 |
368.8 |
343.1 |
205 |
160 |
|
Echinus |
1/0 |
19 |
60 |
2 |
7 |
2,800 |
358.8 |
343.1 |
205 |
160 |
|
Crayfish |
2/0 |
7 |
60 |
1 |
7 |
3,530 |
452.6 |
422.5 |
235 |
185 |
|
Sipho |
2/0 |
19 |
60 |
1 |
7 |
3,530 |
441.0 |
422.5 |
235 |
185 |
|
Fulgar |
3/0 |
19 |
60 |
1/0 |
7 |
4,460 |
543.4 |
521.1 |
275 |
215 |
|
Arca |
4/0 |
19 |
60 |
2/0 |
7 |
5,390 |
671.2 |
644.6 |
315 |
245 |
We are China 0.6/1kv PVC/PE/XLPE Insulated ABC Cable Wire IEC Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
