0.6-1kV XLPE Insulated Aluminum Overhead ABC Cable 1x95sqmm NFC 33-209 IEC60502

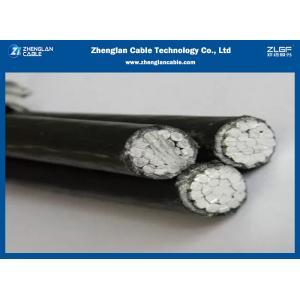

0.6-1kV XLPE Insulated Aluminum Overhead ABC Cable 1x95sqmm NFC 33-209 IEC60502 image
Brand Name :
Model Number :
0.6/1kv aerial insulated cable overhead insulated cable 1x50sqmm IEC60502-1
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
Delivery Time :
Packaging Details :
Wooden drum, iron wooden drum or as required
Insulation Material :
XLPE or PVC
Conductor Material :
Qingdao or Shanghai
0.6-1kV XLPE Insulated Service Aerial Bundled Aluminum Overhead ABC Cable 1x95sqmm NFC 33-209 IEC60502
For distribution low power overhead networks in metropolitan, urban and rural areas. For supply of remote facilities and villages of temporary and permanent character. For above-ground house connections
Laid on cable ladder, tray, in duct in a thermal insulated wall, on a wall or spaced from wall, on the dry and closed cable trench in workshops, building; from source to machine or device, in duct in the ground…
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
Insulation: PVC, XLPE, PE
GB/T 12527-2008, IEC60502, NFC 33-209
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
Below construction are also commonly used around the world.
A) Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
B) Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
3 cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
It meets or exceeds the following specifications:
C ) Quadruplex Service Drop
Phases by longitudinal ribs (I, II, III)
neutral core by longitudinal ribs
(≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs)
|Nominal cross sectional area(mm²)||Wire Minimum no.||Conductor diameter(mm)||
Nominal Insulation thickness
|Single wire average nominal diameter maximum value(mm)||Max. Conductor resistance at 20 ℃(Ω/km)||Min insulation resistance at rated working temper(MΩ*km||Single wire tensile strength(N)|
|Aluminum||Aluminum alloy||70℃||90℃||Aluminum||Aluminum alloy|
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable
- OEM/ODM services provided
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
- Strict quality control system, excellent quality with reasonable price.
We are China 0.6-1kV XLPE Insulated Aluminum Overhead ABC Cable 1x95sqmm NFC 33-209 IEC60502 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.Tags: 1kV Overhead ABC Cable, 1x95sqmm Overhead ABC Cable, NFC 33-209 Overhead ABC Cable, Overhead Insulated Cable
