0.6kv 1kv CPE Sheath 70mm Annealed Tinned Copper Wire

 China 0.6kv 1kv CPE Sheath 70mm Annealed Tinned Copper Wire supplier

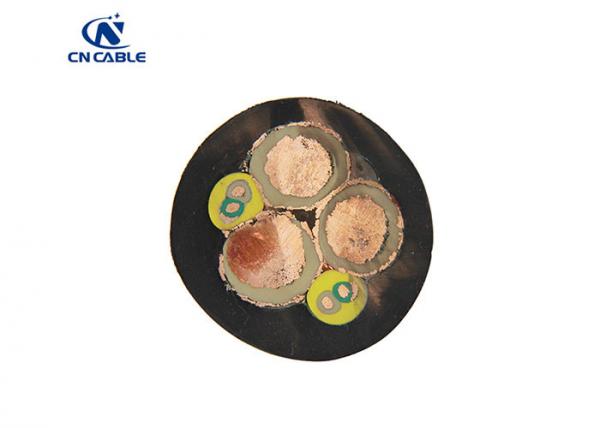

0.6kv 1kv CPE Sheath 70mm Annealed Tinned Copper Wire image

Get a Quote Email to us

Model Number :Mining cable
Certification :CE
Place of Origin :Henan
MOQ :500meters
Payment Terms :L/C, T/T
Delivery Time :30days after payment
Packaging Details :Iron-wooden drum
Conductors :Annealed tinned copper wire
Insulation :EPR
Color :Black
Voltage :0.6/1kv
Sheath :Rubber sheath

0.6/1kv MP MP-GC SHD-PCG H07RN-F CPE Sheath 70mm Flexible Mine Rubber Trailing Cable





Product Description



Application:

The driving cable has the characteristics of cold resistance, softness, wear resistance, and oil resistance. It is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance and oil resistance at AC rated voltages of 0.6/1KV and below. This product has been widely used in metallurgy, electric power, Shipbuilding, automobile manufacturing and other industries.



Cable characteristics:

It has excellent electrical insulation, good ozone resistance, humidity resistance, heat resistance, cold resistance, and aging resistance.

It has the stability of oxygen resistance, ozone resistance and partial discharge stability. It also has excellent cold resistance. Even at -50°C, it still maintains good flexibility.

Has excellent weathering resistance and light stability. In particular, it is halogen-free and has flame-retardant properties. The ethylene-propylene rubber insulated cable with chlorosulfonated polyethylene sheath is suitable for places where flame-retardant is required.

It has good water resistance and good softness, so it is more suitable for laying on mines and ships.



Technical parameter:

No. Description Material Dimension
1 Phase conductor Flexible tinned copper, class5 3C*70sqmm
2 Conductor cores copper 3 cores
3 Conductor shield Semi-conductive rubber Min. 0.3
4 Insulation EPR 2.2mm
5 Screen Tinned copper wires braiding 3*35/3
6 Metal shield Braiding copper wire with cotton thread Coverage>60%
7 Control cores With tinned copper conductor and al foil screen 2*(2*1.5)
9 Control cores insulation Thermosetting ethylene propylene rubber 0.9mm
10 Control cores sheath CPE 1.0mm
11 Filler Ruber /
12 Outer sheath CPE 5.5mm
13 Approx. Cable dia. / 77mm
14 Cable weight per meter / 10.1kg





Related Products





LV CABLE

SINGLE CORE

LV CABLE

2 CORE

LV CABLE

3 Core

SWA LV

POWER CABLE

STA LV

POWER CABLE





Packaging & Shipping

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port

We are China 0.6kv 1kv CPE Sheath 70mm Annealed Tinned Copper Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
