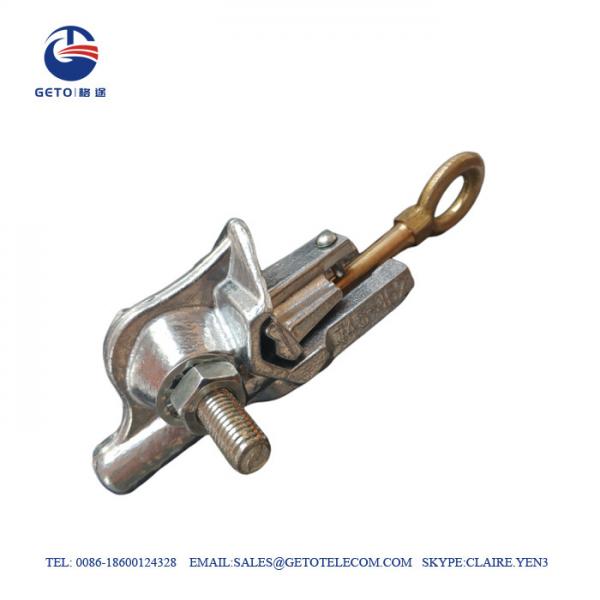

0.745” Aluminum HDG Steel Pole Line Hardwares
0.745” Aluminum HDG Steel Pole Line Hardwares image
Brand Name :
Geto Telecom
Model Number :
S1520AGP/S1530AGP
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
100 Sets
Price :
7
Payment Terms :
L/C, T/T
Supply Ability :
100 PCS/Day
Delivery Time :
15 days
Packaging Details :
Carton + Woven Bag + Pallet
Name :
Aluminum Hotline Clamp
Material :
H.D.G Steel
Application :
General/ Aluminum and ACSR conductor Applications
Weight :
0.245KGS/ 0.33KGS
Standard or Nonstandard :
Standard
Customade :
Available
Status :
New
Range :
Main: 0.414 – 0.128 inch Tap: 0.438 – 0.128
0.745- 0.162 inch / 0.547 – 0.162 inch Aluminum Hotline Clamp
Overview
Aluminum Hotline Clamp are built for General/ Aluminum and ACSR conductor Applications and available for a wide conductor range
Feature
1- Brass and aluminum alloy castings offer high strength, corrosion-resistance and conductor compatibility
2-Extended jaw width means excellent conductor contact, reduced joint temperature, minimal conductor cold flow and reduced twisting of the conductor during installation
3-Spring loaded feature compensates for cold flow and offsets tightening torque vibrations
4-Forged eyebolts provide corrosion free strength and uniformed expansion under loading
5-The side positioned tap connection prevents possible corrosion of conductor or clamp on bimetal connections
| Article | Tap of Connector | Main Line Range | Tap Line Range | Recommended Torque | ||
| No | Main | Tap | Diameter Inch | Diameter Inch | Eyescrew | Terminal |
| S1520APG | Al | Al | 0.414-0.128 | 0.438-0.128 | 180 in-lb. | 180 in.-lb. |
| S1530APG | Al | AL | 0.745-0.162 | 0.547-0.162 | 200 in.-lb. | 250 in.-lb. |
| Part Name | Qty | Material |
| Body | 1 | Al-alloy |
| Keeper | 1 | Al-alloy |
| Tap Eye Bolt | 1 | Brass tin plate |
| Eye Screw | 1 | Brass |
| Spring Washer | 1 | Stainless |
Application
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
