0.75mm2 1.5mm2 Instrumentation Cable / Overall Screened Twisted Pair Cable
0.75mm2 1.5mm2 Instrumentation Cable / Overall Screened Twisted Pair Cable image
Brand Name :
Yifang
Model Number :
12×0.75mm2
Place of Origin :
china
MOQ :
1000m
Price :
USD 0.8-9.6/m
Payment Terms :
T/T
Supply Ability :
300km/month
Delivery Time :
20-30days
Packaging Details :
wooden-steel drum
insulation :
pvc
sheath :
pvc
screen :
overall screen
color :
black
Copper 0.75mm2 Low Smoke Zero Halogen IS/OS Multicore pair instrumentation cable.
1. Application :
Instrument cable has a broad range of uses,particularly in the petrochemical ,pulp,paper and sawmill,and other process industries.
Instrument cable design for wet and dry locations ,it is resistent to mechanical damage and corrosive chenicals ,and it is often employed in raceways,direct burial and control applications.
2. Construction
1. Conductor: bare copper
2. Insulation: pvc/pe/xlpe
3. Individul shield: aluminum/polyester tape with drain wire
4. Overall shield : overall aluminum/polyester tape with drain wire
5. Inner sheath: pvc/pe/lszh
6. Armoured :galvanized steel wire armoured
7. Outer jacket: pvc/pe/lszh
3. Technical data Instrument cable:
| National types | Cable structure characteristics | ||||||
| DJYPV | DJYJPV | Copper wires braided individual screen of each pair | |||||
| DJYP2V | DJYJP2V | Copper tape wrapped individual screen of each pair | |||||
| DJYP3V | DJYJP3V | Laminated Aluminium plastic strip individual screen of each pair | |||||
| DJYVP | DJYJVP | Copper wires braided overall screen | |||||
| DJYVP2 | DJYJVP2 | Copper tape wrapped overall screen | |||||
| DJYVP3 | DJYJVP3 | Laminated Aluminium plastic strip overall screen | |||||
| DJYPVP | DJYJPVP | Copper wires braided individual screen and overll screen | |||||
| DJYP2VP2 | DJYJP2VP2 | Copper tape wrapped individual screen and overll screen | |||||
| DJYP3VP3 | DJYJP3VP3 | Laminated Aluminium plastic strip individual screen and overll screen | |||||
We are China 0.75mm2 1.5mm2 Instrumentation Cable / Overall Screened Twisted Pair Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Instrumentation Cable, multi pair instrumentation cable, multi pair shielded cableSimilar Or Related
-
300/500V 2x2x1.5mm2 3x2x1mm2 CU/PE/PVC/Overall Shielding pair instrumentation computer cables
-

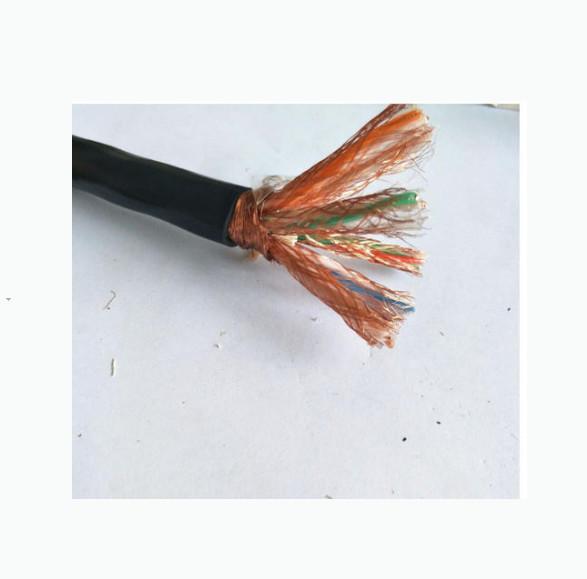

300/500v copper mesh braided shielding individual screened pvc sheath 3 pairs 3×0.75mm2 instrumentation cable
-

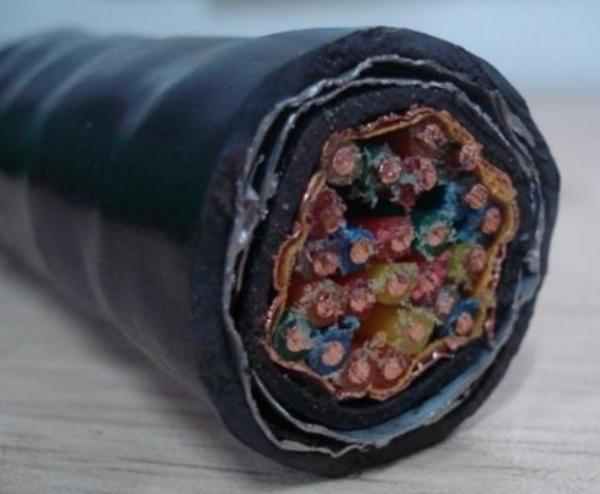

XLPE Insulation Steel Wire Armoured Cu wire/tape Shielded Fire Resistant/ Flame Retardant Instrumentation Cables
-
