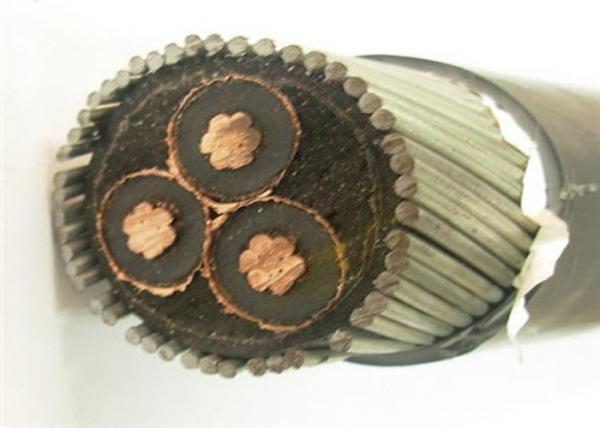

1-35KV XLPE Insulated Armoured Electrical Cable Water Proof 1x500mm2 3x150mm2 3x300mm2

 China 1-35KV XLPE Insulated Armoured Electrical Cable Water Proof 1x500mm2 3x150mm2 3x300mm2 supplier

1-35KV XLPE Insulated Armoured Electrical Cable Water Proof 1x500mm2 3x150mm2 3x300mm2 image

Get a Quote Email to us

Brand Name :
CN

Model Number :
MV

Place of Origin :
Henan, China (Mainland)

MOQ :
200 Meter/Me

Price :
US $1-300 / Meters | 200 Meter/Meters (Min. Order)

Insulation Material :
XLPE

Type :
Medium Voltage

Application :
Underground

Conductor Material :
Cu/AL/AL Alloy

Jacket :
PVC/PE/LSHF

1-35KV :
Blace/Blue/Red

1-35KV XLPE Insulated Armoured Electrical Cable Water Proof 1x500mm2 3x150mm2 3x300mm2

Product Description

Product Description Contact us

Application

The cable can be used for laying indoor, tunnel, underground , canal, water and seabed , etc . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , corrugated alu sheath , lead sheath , etc.

Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 SQMM .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃

Cable Structure

Core Number: 1 core/ 3 Core

Conductor: Cu / AL/AL Alloy

Insulation: XLPE/TRXLPE

Metallic screen: Cu tape/ Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape/AL Wire /STA / SWA

Outer sheath: PVC / PE/ LDPE / LLDPE/LSHF

Product date sheet

Rated Circuit Voltage (Phase to Phase) Conductor Size Nominal Insulation Thickness AC Test Voltage DC Test Voltage
A B
V AWG/kcmil mm KV KV
0-600 14-9 1.016 0.762 3.5 10.5
8-2 1.397 1.143 5.5 16.5
1-4/0 2.032 1.397 7 21
225-500 2.413 1.651 8 24
525-1000 2.64 2.032 10 30
1025-2000 3.175 2.54 11.5 34
601-2000 14-9 1.397 1.016 5.5 16.5
8-2 1.778 1.397 7 21
1-4/0 2.159 1.651 8 24
225-500 2.667 1.778 9.5 28.5
525-1000 3.048 2.159 11.5 34.5
1025-2000 3.556 2.921 13.5 40

Click for More Information

Packaging & Shipping
Packaging & Shipping Contact us

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port

Company Information
Company Information Contact us

1.10+ years experience of export business

2. Flexible business model ,rich customer groups

3 .Wide range of cable products , rich resources in local market

4.Some Export Area: Australia, Bangladesh, Canada, Chile, CoteD`lvoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Iraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal, Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda,Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay, Yemen, Zimbabwe, Zambia.

Certifications

Certifications Contact us

Our Services
Our Services Contact us

1. Product consultation,analysis, design , production

2. Provide industry information, Product Training , Assist Product Marketing

3. Provide project supportsuch as tender assistant, cooperate visit customers , FAT support

4.Complete Quality systemand docs available, faster lead time, good quality, strong technical support, free samples

5. OEM service

6. Other services customized by clients

FAQ
FAQ Contact us

Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !

Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.

Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.

Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!

Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .

Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.

Other questions ? Welcome to contact us immediately !

We are China 1-35KV XLPE Insulated Armoured Electrical Cable Water Proof 1x500mm2 3x150mm2 3x300mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
