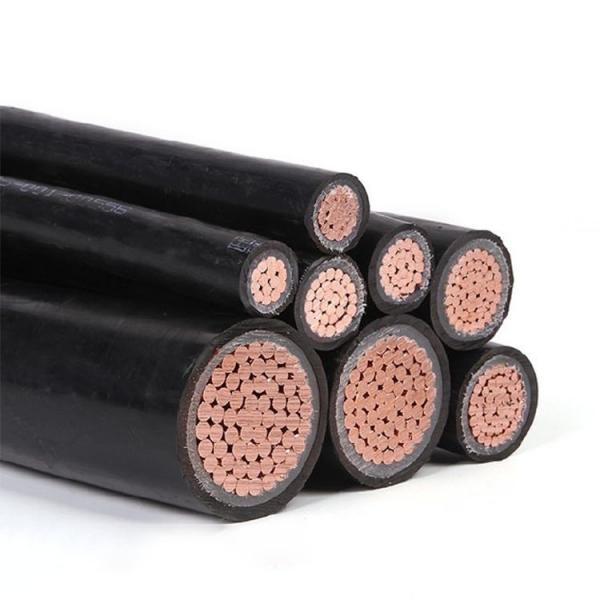

1 Core 25mm2 95mm2 PVC Insulation 600V / 1000V HV Power Cable
1 Core 25mm2 95mm2 PVC Insulation 600V / 1000V HV Power Cable image
Place of Origin :
china
Brand Name :
OEM
Supply Ability :
50000meters per week
Packaging Details :
wooden drum
MOQ :
200 meters
Price :
Negotiable
Certification :
ISO/RoHS/CE
Delivery Time :
5-15day
Payment Terms :
L/C, T/T
Insulation Material :
PVC
Application :
Construction
Conductor Material :
Copper
Jacket :
PVC, PVC for different types of cables
Standard :
IEC60502 BS6346 for different types of cables
Color :
Green,Red,Black,Yellow for different types of cables
Conductor :
BS 6360 Class 2,stranded copper for different types of cables
rated voltage :
0.6/1kv for different types of cables
low smoking :
yes
underground cable type :
armoured or no armoured for different types of cables
No. of cores :
1-5core,3+1,3+2,4+1core for different types of cables
fire resistance :
can be
1 Core 25mm2 95mm2 PVC Insulation 600V / 1000V HV Power Cable
- Rated Voltage: 600/1000V
- Condutor: BS 6360 Class 2, standed copper or Aluminum (IEC 60228)
- Insulation: BS6746 TM1 PVC Compound
- Insulation Color: Standard
- Sheath (Jacket): BS 6746 TM1 PVC Compound
- Operating Temperature: 70oC
- Min bending radius: 10 x overall insulated diameter
- Standard: BS 6346 and IEC 60502
|
0.6/1kV 1-core Al/PVC/ PVC Cable(VV) |
|
|
Nominal cross sectional area of conductor(mm2) |
Approx, overall diameter(mm) |
|
1×4 |
6.8 |
|
1×25 |
10.4 |
|
1×95 |
16.4 |
|
1×185 |
22.5 |
|
1×300 |
27.3 |
|
1×500 |
39.0 |
|
1×630 |
40.2 |
