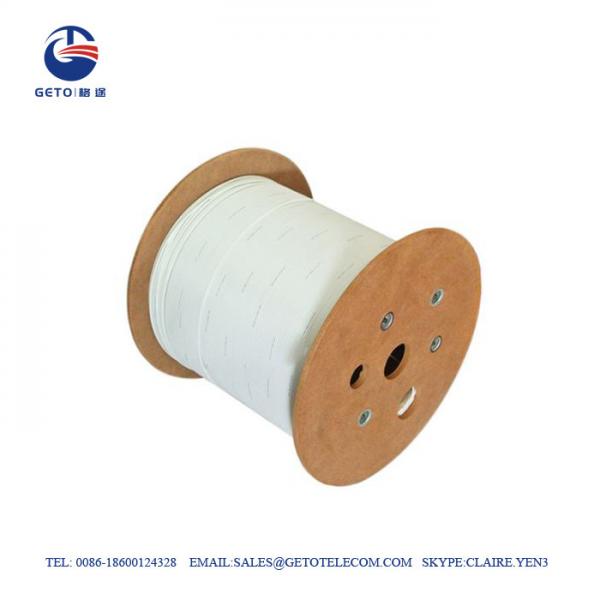

1000 Metres Outdoor G657A OM1 Flat Drop Fiber Cable
1000 Metres Outdoor G657A OM1 Flat Drop Fiber Cable image
Brand Name :
Geto Telecom
Model Number :
GJXFH
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
GJXFH FTTH Outdoor Drop Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
GJXFH FTTH outdoor drop cable G657A1 ftth optical fiber cable
Description
GJXFH L optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Characteristics
• Choice of fibre types
• Single mode optical fibre meting ITU-T G.657A1 or ITU-T G.657A2
• Individually coloured optical fibres
• Notched 2 x 3 mm construction for easy stripping
• White LSZH jacket for internal use
• Black LSZH jacket for short distance external use
Applications
intelligent building, digital community, campus network, LAN
Operating Temperature:-20℃～﹢70℃
Specification
| Cable Code |
Fiber Count |
Cable Size (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short term(N) |
Crush Resistance Long/Short term (N/100mm) |
Bending Radius Static/Dyna mic (mm) |
||
| GJXFH | 2 | (2.0±0.1)× (3.0±0.1) |
9 | 40/80 | 500/1000 | 15/30 |
