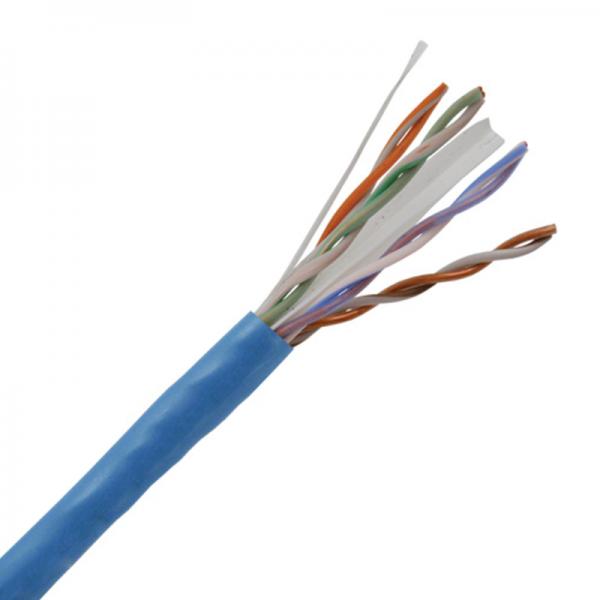

1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking image
Brand Name :
JHY CABLE
Model Number :
CAT6 UTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
UTP
Insulation :
HDPE
Sheet :
PVC
1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
Production Description:
Application:
These are structured cables for campus, riser and horizontal installations. Suitable for Ethernet Applications and compatible with all known connection systems. Ideal for high performance workstation applications including voice/ data systems, digital video, broadband and voice over internet protocol, etc.
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1,10,100,250MHz | Max. 570, 545, 538 & 536 ns/100 m |
| Propagation Delay Skew 1 – 250 MHz | Max. 45 ns/100 m |
Features:
23 AWG Solid Cable
Fluke Past Test Cable
Plenum Jacket (CMP Rated)
550MHz Cable Performance
ETL Listed RoHS Compliant
Solid Pure Copper Conductor
4 Pair Un-shielded Twisted Pair (UTP) cable
EZ pull out, foot marked and easy to use a box
Meet and exceed ISO/IEC/RoHS standards and specifications
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |
Cable Diameter , Standard Length & Packing:
| Cable Diameter | : 6.35 mm (Max.) |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
| Available Colour | : Grey or As Per Customer Requirement |
Construction
| 1. Conductor material: | Solid bare copper 0.57mm (23 AWG) | |
|
2. Insulation material: |
HDPE (High density Polyethylene) |
|
| 3. Outer sheath material: | PVC | |
| 4. rip cord: | Nylon | |
| 5.Separator: |
cross filler |
Packaging
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 14.2 kg | 305m/roll pull box | 42 x 24 x 42 |
800 box |
6. Product Image
Company Contact Information:
| OUR SERVICE | |
|
Our products:
1) PVC Insulation Electrical Wires;
2) XLPE Insulated Power Cables; 3) Medium and High Voltage Power Cables; 4) Aerial Bundled Cables; 5) Mineral Insulated Fire Resistant Cables 6) Control Cables, Instrument Cables, Communication Cables etc.
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
