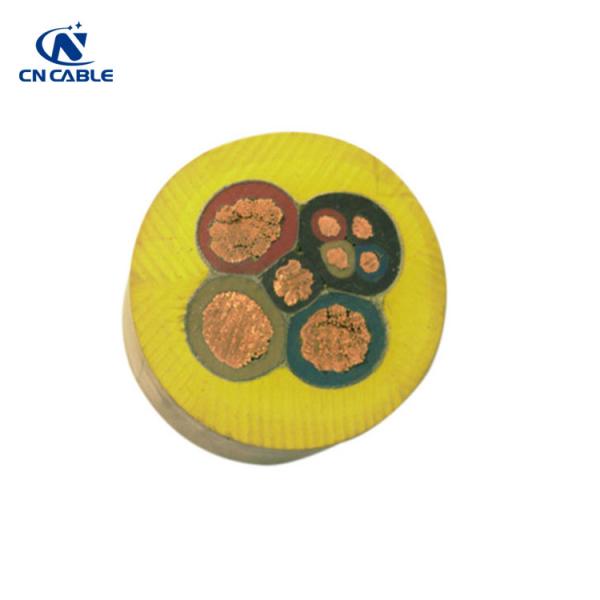

1000V Flexible Mining Flame Retardant Cable EPR Rubber Insulation
1000V Flexible Mining Flame Retardant Cable EPR Rubber Insulation image
Model Number :NSSHOEU-J Cable
Certification :CE
Place of Origin :Henan, China
MOQ :200meters
Payment Terms :L/C, T/T, Western Union
Delivery Time :1-4 weeks
Packaging Details :Iron-wooden drum
Conductors :Flexible tinned copper wire , (class 5)
Insulation :EPR rubber
Outer sheath :Rubber compound, type 5GM5
Voltage :600V/1000V
Color :Yellow
Flame Retardant Heavy Duty Flexible NSSHOEU-J Cable 0.6/1KV
Product Description
Application
They can be used permanently in waste water up to 40°C at a depth of max. 2000 m and in fresh water, salt water, industrial water, rainwater, oily water and sewage contaminated water.
The cables are suitable for indoor and outdoor applications.
Reference Standard
Cable characters
Cable structure
| Cable size | Conductor wire dia. |
Approx. Conductor dia. |
Cable dia. | Cable weight | Max. D.C. Resistance at 20℃ | Min. Bending radius |
| No.x mm2 | mm | mm | mm | kg/km | Ω/km | mm |
| 3×50+25/3 | Max. 0.41 | 9.39 | 41.7 | 3000 | 0.393 | 167 |
| 3×70+35/3 | Max. 0.51 | 11.12 | 45.2 | 4000 | 0.277 | 181 |
| 3×95+50/3 | Max. 0.51 | 12.95 | 51.9 | 5500 | 0.21 | 208 |
| 3×120+70/3 | Max. 0.51 | 14.56 | 57.2 | 6800 | 0.164 | 229 |
| 3×150+70/3 | Max. 0.51 | 16.27 | 60.4 | 8000 | 0.132 | 242 |
| 3×185+95/3 | Max. 0.51 | 18.07 | 67.5 | 10000 | 0.108 | 270 |
| 3×240+120/3 | Max. 0.51 | 20.59 | 75.4 | 12000 | 0.0817 | 302 |
Packaging & Shipping
We are China 1000V Flexible Mining Flame Retardant Cable EPR Rubber Insulation manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
