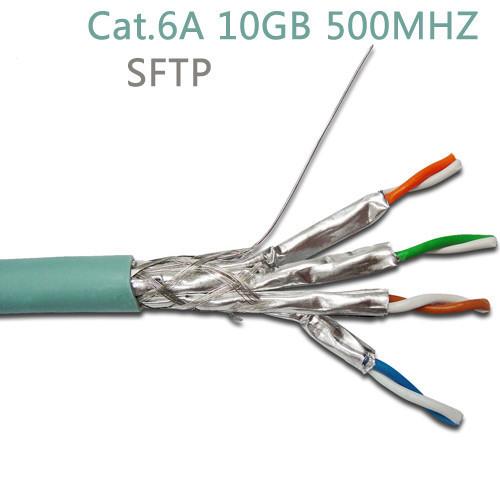

10GB 500MHZ CAT6A SFTP LSZH Solid BC Flexible Network Cable Double Shielded Category 6A Lan Cables
10GB 500MHZ CAT6A SFTP LSZH Solid BC Flexible Network Cable Double Shielded Category 6A Lan Cables image
Brand Name :
JHY CABLE
Model Number :
CAT6a SFTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6a
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
Shielded and Foiled
Insulation :
HDPE
Sheet :
PVC
10GB 500MHZ CAT6A SFTP LSZH Solid BC Network Double Shielded Category 6A Lan Cables
Production Description:
Conductor : 4 twisted pairs pure copper wires – each wire diameter AWG23 0.56mm
Each pair is screened by AL-FOIL, Overall shielded by braiding : Tinned Copper wires
Includes Drain wire : Tinned copper
Cable Jacket : LSOH/LSZH (Low Smoke Zero Halogen) Flam resistant test acc. to IE 0332-1
Standard printing on the cable jackt, Out diameter (O.D: 7.5-7.8mm)
| Cable Type | Cat6a | Shielding Type | SFTP |
| Cable Jacket | PVC CMR | Cable Length | 1000ft (305m) |
| Standard Bandwidth | 500MHz | Data Rate Support | 10GBase-T |
| Wire Gauge | 23AWG | Conductor Type | Solid Oxygen-free Copper |
| Conductor Diameter(mm) | 0.560 ± 0.005 | Cable Outer Diameter (mm) | 7.50 ± 0.50 |
| Cable Color | Blue | Standard | ISO/IEC 11801, ANSI/TIA-568-C.2 |
| Operating Temperature | 0 to 50°C (32 to 122°F) | Installation Temperature | -30 to 50°C (-22 to 122°F) |
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |
Cable Diameter , Standard Length & Packing:
| Cable Diameter | : 6.35 mm (Max.) |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
| Available Colour | : Grey or As Per Customer Requirement |
Construction
| 1. Conductor material: | Solid bare copper 0.57mm (23 AWG) | |
|
2. Insulation material: |
HDPE (High density Polyethylene) |
|
| 3. Outer sheath: | PVC | |
| 4. rip cord: | Nylon | |
| 5.Separator: |
cross filler |
|
| 6. Shielded | Shielded and foiled |
Packaging
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 15.8 kg | 305m/roll pull box | 42 x 24 x 42 |
800 box |
6. Product Image
Company Contact Information:
| OUR SERVICE | |
|
Our products:
1) PVC Insulation Electrical Wires;
2) XLPE Insulated Power Cables; 3) Medium and High Voltage Power Cables; 4) Aerial Bundled Cables; 5) Mineral Insulated Fire Resistant Cables 6) Control Cables, Instrument Cables, Communication Cables etc.
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 10GB 500MHZ CAT6A SFTP LSZH Solid BC Flexible Network Cable Double Shielded Category 6A Lan Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
