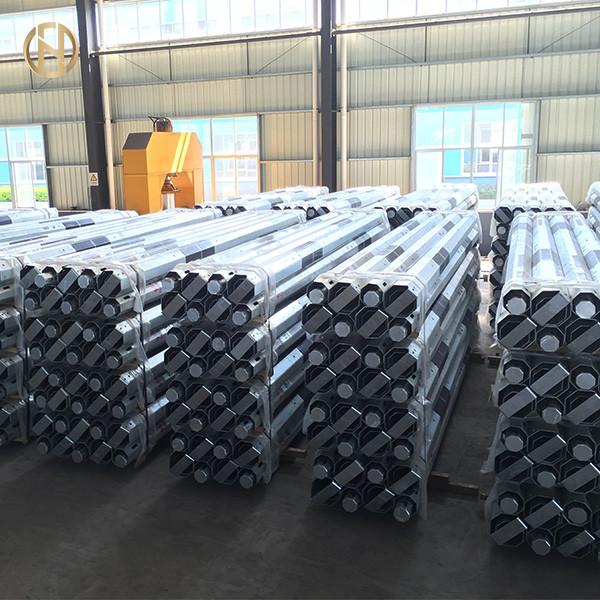

10m 11m Class 3 Galvanized Steel Electrical Pole 11KV 33KV 5.3KN 6.7KN
10m 11m Class 3 Galvanized Steel Electrical Pole 11KV 33KV 5.3KN 6.7KN image
Brand Name :
FUTAO
Model Number :
10M 11M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
20 pieces
Price :
$133 – $445/piece
Payment Terms :
L/C, T/T
Supply Ability :
2200 pieces every month
Delivery Time :
31 -44 workdays
Packaging Details :
40HC or OT, wrap by mat or straw mat
Height :
10m 11M
Material :
ASTM GR65, GR50, Q460, A572, S355, Q345, Q235,etc
Power :
11KV 33KV
Shape :
Tubular, Polygonal and Conical
Surface Treatment :
Hot Dip Galvanized
Wind Resistance :
160 km/h
Earthquake Resistance :
Against grade of 8
10M 11m class 3, Galvanized Electrical Pole and Steel Pole 5.3KN , 6.7KN for ghana market.
Product Description
Our galvanized electrical poles are specifically designed for 10M 11m class 3, Galvanized Electrical Pole and Steel Pole 5.3KN , 6.7KN for ghana market., We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specifical Details
|
Product Name |
10M 11m class 3, Galvanized Electrical Pole and Steel Pole 5.3KN , 6.7KN for ghana market. |
|---|---|
|
Height |
10m 11M |
|
Thickness |
3 to 5mm |
|
Shape |
Tubular, Polygonal or Conical |
|
Surface Treatment |
Hot Dip Galvanized or any other standards according to clients' request |
|
Color |
Any, According to clients' request |
|
Voltage |
10kv – 33kv |
|
Material |
ASTM GR65, GR50, Q460, A572, S355, Q345, Q235,etc |
|
Welding |
Welding complies with AWS D1.1 standard CO2 welding or Submerged Arc Auto methods No scarring, craters, spatters, distortions, defects of any kind due to welding errors Unique Internal and External Welding method that allows for a smoother surface Additional welding requirments can be made as per clients' request |
|
Life Expectancy |
More than 25 years depending on various environmental factors |
|
Qualification |
ISO9001-2015, AAA Credit Rating |
|
Wind Resisance |
160 km/h |
|
Earthquake Resisance |
Against earthquake of grade 8 |
Loading test
| %Load | Load(kg) | Act.Load(kg) | Time(min.) | Deflection(mm) | Recovery (mm) |
Remarks | ||
| 40% | 536 | 550 | 1 | 130 | 1 | Passed
No signed of failfure or damage |
||
| 50% | 670 | 690 | 1 | 155 | 1 | |||
| 70% | 938 | 952 | 2 | 210 | 2 | |||
| 80% | 1072 | 1077 | 2 | 250 | 3 | |||
| 85% | 1139 | 1150 | 2 | 254 | 3 | |||
| 90% | 1206 | 1220 | 2 | 276 | 4 | |||
| 95% | 1273 | 1285 | 2 | 288 | 6 | |||
| 100% | 1340 | 1365 | 5 | 300 | 8 | |||
| 120% | 1608 | 1630 | 2 | 380 | 12 | |||
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
FAQ
1. Price Term : FOB, CFR or CIF
– The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.
– Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.
2. MOQ : 1 set for customized
3. Payment: 30% by T/T as initial deposit, remaining balance by T/T or L/C at sight before shipment. Other payment terms can be negotiated.
4. Delivery Time : Goods will be ready for shipment within 10 working days after receiving initial deposit
5. Warranty : 30 years
6. Surface Treatment : Hot Dip Galvanization
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. 2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
We are China 10m 11m Class 3 Galvanized Steel Electrical Pole 11KV 33KV 5.3KN 6.7KN manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
