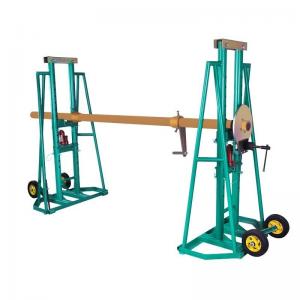

10T – 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed
10T – 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed image
Brand Name :
shenhong
Model Number :
SIYZ
Certification :
CE,BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after deposit
Packaging Details :
plywood case
Coil diameter :
2000-3800mm
Coil width :
1700-1950mm
Max weight :
10-15T
Max working torque :
3300-4500N.m
Max speed :
45rpm
Axle diameter :
94-119mm
Weight :
597-789kg
Length of hydraulic tube :
15-20m
10T – 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed
Application
It is applicable to the placement of the cable tray, with hydraulic lifting.
Features
It is applicable to be as the support of large cable reel in laying cables in the city.
It is easy to move with the trundles in the bottom.
It can be equipped with a braking device, using the foot brake.
Notes: Connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling.
Technical data of 10-15T Hydraulic conductor reel drum stand 3300-4500N.m brake force 45rpm speed
| Model | SIYZ10 | SIYZ15 | |
| Applicable reel | Diameter of coil(mm) | Φ2000-3000 | Φ2000-3800 |
| Width of coil(mm) | ≤1700 | ≤1950 | |
| Diameter of axle hole(mm) | Φ125-130 | ||
| Maximum weight(kg) | 10000 | 15000 | |
| Max working torque(N.m) | 3300 | 4500 | |
| Max speed(rpm) | 45 | 45 | |
| Axle diameter(mm) | Φ94 | Φ119 | |
| Weight(kg) | 597 | 789 | |
| Length of hydraulic tube(m) | 15 | 20 | |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China 10T – 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
