110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower

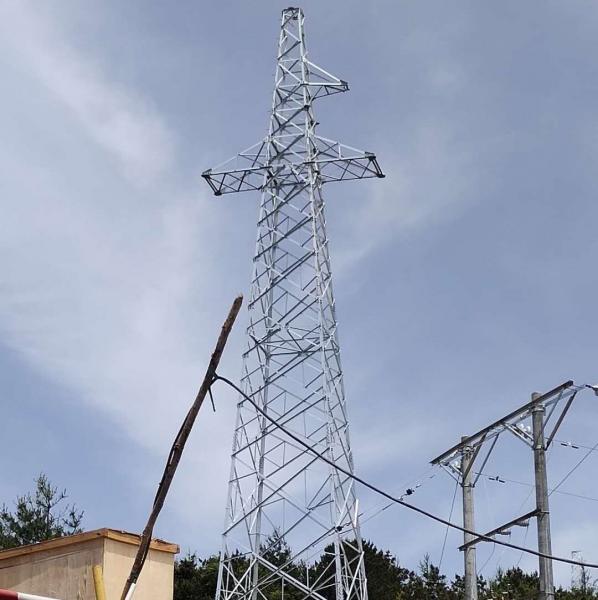

110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower image
Brand Name :
Suntech
Model Number :
Cellular Transmission Tower
Certification :
ISO
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the newest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Material :
Steel Q355/Q255
Name :
Steel Tower Cellular Transmission Tower
Voltage :
10KV-1000KV
Surface Treatment :
Hot Dip Galvanised
Application :
Electric Tower Site
110kV/132kV Electric 4 Legged Angular Steel Tower Cellular Transmission Tower
Suspension Towers
Mainly the Suspension towers are on the way of that straight line of transmission line . It may also vary maximum to degree of 5 angle . The high voltage suspension towers are design to carry the only weight of the conductor in straight line position.Most of towers in any transmission line is fall into this type of tower category and construction cost of suspension type transmission lines are much cheaper compare to other types of transmission lines.These type of towers are used on the lines for straight run or for small angle of deviation up to 2° or 5° . Conductor on suspension towers may be supported by means of I-string, V- string or the combination of I & V strings.
Tension Towers (Angle)
Electrical Tension towers are used at locations where the angel of deviation is more than degree of 5. These towers are also known as angle towers and the tower are designed to take the tension load of the cable. Tension towers are mostly use for turning points and for the section isolate locations.
| Product Parameters | |
| Material | Steel Q235B/Q345B/Q420 |
| Quality Control | ISO/GB |
| Voltage Grade | Normally 35KV, 66KV, 110KV, 220KV |
| Surface Treatment | Hot Dip Galvanization |
| Color | Sliver |
| Connection | Bolts and Nuts |
| Usage | Power transmission and distribution |
| Quality Standard | ISO9001:2008 |
| Welding Standard | AWSD1.1 |
| Galvanization Standard | ASTM123 |
| Available Height | 5-80 m |
| Wind Pressure | 5-180KM/H |
We are China 110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
