11kv Overhead Insulated Cable Overhead Power Transmission Lines 3×120+1x50sqmm

 China 11kv Overhead Insulated Cable Overhead Power Transmission Lines 3×120+1x50sqmm supplier

11kv Overhead Insulated Cable Overhead Power Transmission Lines 3×120+1x50sqmm image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
11kv overhead insulated cable overhead power transmission lines 3×120+1x50sqmm IEC60502-2 overhead service cable

Certification :
ISO 9001:2015,ISO 14001:2005; CCC

Place of Origin :
Henan, China

MOQ :
1000m

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
15,000 KM/Year

Delivery Time :
10 days

Packaging Details :
Wooden drum, iron wooden drum or as required

Insulation Material :
XLPE

Conductor Material :
Aluminum, aluminum alloy, acsr

Application :
Overhead

Quality :
100% test

Standard :
GB/T 12527-2008, IEC60502-1

structure :
AL/SC/XLPE/SC/CTS/PVC, AL/SC/XLPE/SC/CTS/PE,

Voltage :
6.35/11KV

Port :
Qingdao or Shanghai

11kv overhead insulated cable overhead power transmission lines 3×120+1x50sqmm IEC60502-2 overhead service cable DESCRIPT ION

Circular compacted stranded aluminium conductor, ×LPE insulated, copper tape screened and PVC outer sheathed cable.The three ×LPE insulated and copper tape screened single core cables are bundled around the galvanized steel wires in a right hand lay.

11kv overhead insulated cable overhead power transmission lines 3×120+1x50sqmm IEC60502-2 overhead service cable CONSTRUCT ION

l Conductor Phase conductors are circular compacted stranded H68 aluminium to Bs2627.
2 Conductor screen Extruded layer of semi-conductive compound.
3 Insulation ×LPE (cross-linked polyethylene) rated at 91.C.
4 Insulation screen
Non-metallic part: Extruded layer of semi-conductive compound.
Metallic part: Copper tape screen ( SCT ).
5 Colour for core identifcation Red, yellow and blue tapes shall be applied between non metallic and metallic part of insulation
screen.
6 Separator Polypropylene laminated tape.
7 outer sheath PVC type sT2 to IEC 61512 colour black.The outer sheath shall be embossed with fgures l, 2, 3 corresponding
to red, yellow, blue phase.
8support wire The support wire shall comprise a stranded galvanized steel wires
9Assembly The three ×LPE insulated and copper wire screened single core cables are bundled around the galvanized steel steel wires in a right hand (Z) lay.

11kv overhead insulated cable overhead power transmission lines 3×120+1x50sqmm IEC60502-2 overhead service cable Technical data

Phase conductor

Nominal cross-sectional area mm2 50 70 95 120 150 l85 241
Number of cores 3 3 3 3 3 3 3
Minimum number of wires 6 12 15 15 15 30 30
Nominal diameter of conductor mm 8.l 9.7 11.5 12.9 l4.3 16.1 l8.4
Nominal thickness of ×LPE insulation mm 3.4 3.4 3.4 3.4 3.4 3.4 3.4
Metallic screening approx. thickness of copper tape mm 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Nominal thickness of outer sheath mm 2.3 2.3 2.3 2.3 2.3 2.3 2.3
Nominal diameter over sheathing mm 23.0 24.6 26.3 27.8 29.2 30.9 33.3
Max. dc resistance at 20°C ohm.km 1.64l 1.443 0.320 0.253 0.206 1.l64 0.125
Earth fault current carrying capacity of metallic screen at
-1 second ( 1 Core ) kA 1.57 1.72 l.88 2.01 2.l4 2.30 2.52
-3 seconds ( 1 Core ) kA 0.90 0.99 l.18 1.16 1.23 1.33 l.45

Messenger – Galvanized steel wire

Nominal cross-sectional area mm2 50 50 50 50 50 50 50
Stranding No..mm 7.3.l5 7.3.l5 7.3.l5 7.3.l5 7.3.l5 7.3.l5 7.3.l5
Direction of the outermost layer Right-hand ( Z )
Overall diameter mm 9.45 9.45 9.45 9.45 9.45 9.45 9.45
Minimum breaking load kg 6270 6270 6270 6270 6270 6270 6270

Completed cable

Approx. overall diameter mm 55 59 62 65 67 71 75
Approx. weight of cable kg.km 2541 2891 3300 3660 4141 4541 5290
Packing length m.drum 500 500 500 500 500 500 500

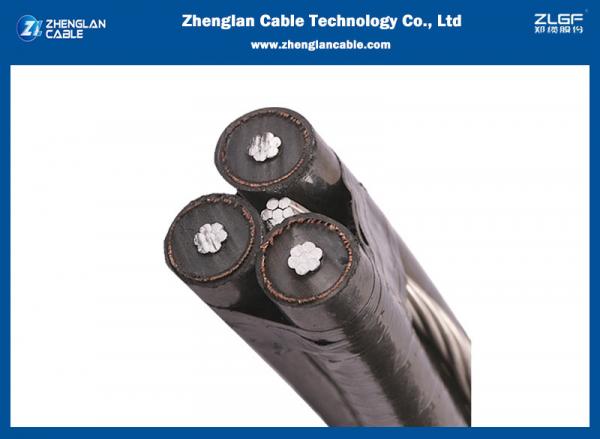

11kv overhead insulated cable overhead power transmission lines 3×120+1x50sqmm IEC60502-2 overhead service cable image
