1350 All Aluminium Conductor Astm B 231 Bs 215 Iec 61089 Din 48201 Bs En 50182

 China 1350 All Aluminium Conductor Astm B 231 Bs 215 Iec 61089 Din 48201 Bs En 50182 supplier

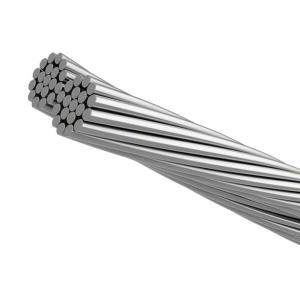

1350 All Aluminium Conductor Astm B 231 Bs 215 Iec 61089 Din 48201 Bs En 50182 image

Get a Quote Email to us

Brand Name :Sanwu
Model Number :All Aluminium Conductor
Certification :ISO SGS
Place of Origin :Henan,China
MOQ :1000M
Price :Negotiable
Payment Terms :L/C, T/T, Western Union, MoneyGram
Supply Ability :200 tons per day
Delivery Time :two weeks
Packaging Details :New wooden drum, Reel, Circle or according to customer’s request
Type :795 All Aluminium Conductor
Material :1350-H19 Aluminum
Standard :ASTM B 231, BS 215, IEC 61089, DIN 48201, BS EN 50182
Voltage :Under 330kv
Application :distribution line
Port :Qingdao / Nimgbo / Tianjin
Keywords :All Aluminum conductor

All Aluminium Conductor ASTM B 231, BS 215, IEC 61089, DIN 48201, BS EN 50182

Advantage:

1. High Current Carrying Capacity.
2. Excellent resistance to corrosion.
3. Ideal for use in coastal area.
4. Suitable for low & medium voltage lines in urban area.

STANDARDS:

Manufacturing Standards :GB/T 1179-2008, IEC 61089, EN 50182, DIN 48204, BS 215 Part 2, ASTM B232, NF C 34-120 or as required

Code Name Area Stranding and wire diameter Approx. Overall diameter Weight Nominal breaking load Nom. DC resistance at 20 deg.
Nominal Actual
mm2 mm2 mm mm kg/km kN ohm/km
MIDGE 22 23.33 7/2.06 6.2 64 3.99 1.227
APHIS 25 26.4 3/3.35 7.2 73 4.11 1.081
GNAT 25 26.8 7/2.21 6.6 73 4.59 1.066
WEEVIL 30 31.6 3/3.66 7.9 86 4.86 0.9082
MOSQUITO 35 37.0 7/2.59 7.8 101 6.03 0.7762
LADYBIRD 40 42.8 7/2.79 8.4 117 6.87 0.6689
ANT 50 52.83 7/3.10 9.3 145 8.28 0.5419
FLY 60 63.55 7/3.40 10.2 174 9.90 0.4505
BLUEBOTTLE 70 73.7 7/3.66 11.0 202 11.34 0.3881
EARWING 75 78.5 7/3.78 11.4 215 11.94 0.3644
GRASSHOPPER 80 84.1 7/3.91 11.7 230 12.78 0.3406
CLEGG 90 95.6 7/4.17 12.5 262 14.53 0.2995
WASP 100 106.0 7/4.39 13.2 290 16.00 0.2702
BEETLE 100 106.6 19/2.67 13.4 293 17.42 0.2704
BEE 125 132.0 7/4.90 14.7 361 19.94 0.2169

CONSTRUCTION:

Aluminum 1350-H19 wires, concentrically stranded.

The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.

Bare concentric-lay-stranded aluminum wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminum wires.
In all constructions, the successive layers shall have opposite directions of lay, the outermost layer being right-handed.

Our Workshop & Testing Lab

Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers

FAQ:
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A

We are China 1350 All Aluminium Conductor Astm B 231 Bs 215 Iec 61089 Din 48201 Bs En 50182 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
