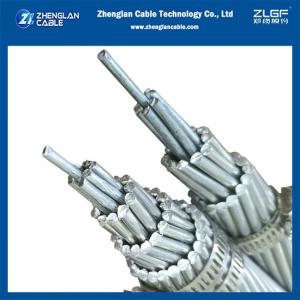

158-AL1/ 37-ST1A Wolf Overhead Bare Conductor Aluminnum 158/37mm2 image

Get a Quote Email to us

158-AL1/ 37-ST1A Wolf Overhead bare conductor Aluminnum conductor manufacturer

ACSR conductors of steel core aluminum stranded cables consist of several aluminum and galvanized steel conductors, twisted in concentric layers. The wires that make up the core are made of galvanized steel and the outer layer is made of aluminum. Galvanized iron core generally consists of 1, 7 or 19 wires. The diameters of steel wire and aluminum wire can be the same or different.

Electrical properties
Density@20℃ Aluminum: 2.703 kg/dm
Galvanized steel: 7.80 kg/dm
Temperature coefficient @20°C Aluminum: 0.00403 (°C)
Resistivity@20°C Aluminum: Should not exceed 0.028264
Coefficient of linear expansion Aluminum: 23 x10 (°C)
Galvanized steel: 11.5 x10 (1/°C)

REFERENCE STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

158-AL1/ 37-ST1A Wolf Overhead bare conductor Aluminnum conductor manufacturer CONSTRUCTION PARAMETERS

Code Old Code Area No. of Wires Wire Diameter Diameter Mass per Unit Rated Strength DC Resistance
AL Steel Total AL Steel AL Steel Core Cond. Length
mm2 2 mm 2 mm mm mm mm mm kg/km kN Q/km
158-AL1/37-ST1A WOLF 158.1 36.9 194.9 30 7 2.59 2.59 7.77 18.1 725.3 68.91 0.1829

158-AL1/ 37-ST1A Wolf Overhead bare conductor Aluminnum conductor manufacturer drawing
