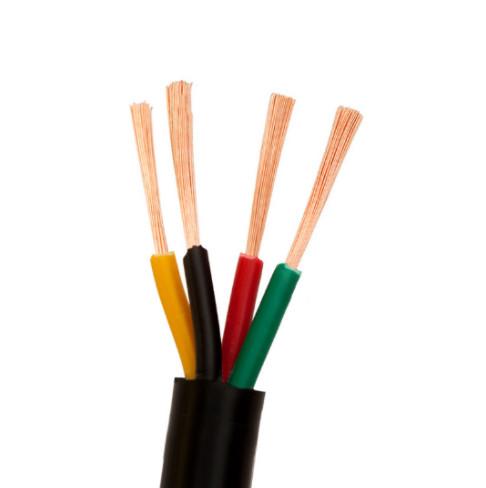

18AWG PVC Insulation Copper Conductor Fire Resistant Cable
18AWG PVC Insulation Copper Conductor Fire Resistant Cable image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Application :
Mining,Alarm system and Signaling
Insulation material :
Fiberglass,
Conductor material :
copper
Type :
Insulated
Conductor type :
Stranded,flexible
Color :
black and others
Price :
Negotiable
18AWG PVC Insulation Copper Conductor Fire Resistant Cable
Apply to low voltage circuit, remote control, security system, communication system and talkback etc.
Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull stations
Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems.
The products can be produce according to the standard IEC 60502. Our factory can also design and manufacture special XLPE cable according to the other standards required by the customers'. They not only have excellent electric conductivity mechanical properties, but also have powerful resistance against chemical corrosion, heating and environmental stress. Their structure are simple. The permissible maximum operating temperature is 90° C. It is convenient for using, and they can be laid with no restriction of different elevation.
Fire performance cable flame retardant cable Fire resistant cable
| Conductor | Material | Stranded Bare Copper |
| Size | 18AWG X 4C | |
| Construction | 16/0.24mm(0.254mm) | |
| Insulation | Material | PVC |
| Min. Thickness | 0.27mm | |
| AVG. Thickness | 0.30mm | |
| Diameter | 1.70±0.05mm | |
| Colors | Black & Red & White & Green | |
| Jacket | Material | PVC |
| AVG. Thickness | 0.50mm | |
| Min. Thickness | 0.45mm | |
| Diameter | 5.10±0.10mm | |
| Rip Cord | Nylon | |
| Colors | Per request |
Fire performance cable flame retardant cable Fire resistant cable
We are China 18AWG PVC Insulation Copper Conductor Fire Resistant Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 18AWG Fire Resistant Cable, 18AWG fire retardant cable, Fire Resistant Cable, PVC Insulation Fire Resistant Cable
