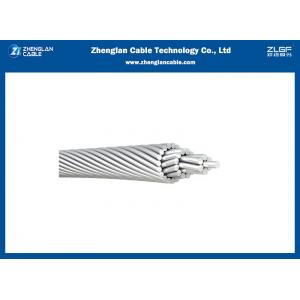

19/2.1mm AAAC 70sqmm DIN 48201 Bare Aluminum Conductor

19/2.1mm AAAC 70sqmm DIN 48201 Bare Aluminum Conductor image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
AAAC 70sqmm

Certification :
3C，ISO 9001:2015，ISO 14001:2005

Place of Origin :
Henan, China

MOQ :
1000m

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
100KM/Month

Delivery Time :
15 Working Days

Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized

Material :
aluminium alloy

Size :
70mm2

Quality :
BS standard, ASTM

Standard :
Construction as per BS 50182

Brand :
Zhenglan Cable

All aluminum alloy conductor 19/2.1mm AAAC 70sqmm DIN 48201

Application:

AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

Electrical properties:

density@20ºC	2.70 kg/dm
Temperature Coefficient@20°C	0.00360 (°C)
resistivity@20°C	0.0326 Ohms mm2/m
linear Expansivity	23 x10^-6 (°C)

Service conditions:

Ambient Temperature	-5°C – 50°C
Wind Pressure	80 – 130kg/m
Seismic Acceleration	0.12 – 0.05g
Isokeraunic level	10 – 18
relative Humidity	5 – 100%

19/2.1mm AAAC 70sqmm DIN 48201 Bare Aluminum Conductor technical data sheets:

Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm²	mm²	No.×mm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	4.44	2.0742	78
25	24.25	7/2.10	6.3	66	6.77	1.3593	102
35	34.36	7/2.50	7.5	94	9.6	0.9591	126
50	49.48	7/3.00	9	135	13.82	0.666	158
50	48.35	19/1.80	9	133	13.5	0.6849	156
70	65.81	19/2.10	10.5	181	18.38	0.5032	189
95	93.27	19/2.50	12.5	256	26.05	0.3551	234
120	116.99	19/2.80	14	322	32.68	0.2831	269
150	147.11	37/2.25	15.8	406	41.09	0.2256	309
185	181.62	37/2.50	17.5	500	50.73	0.1828	352
240	242.54	61/2.25	20.3	670	67.74	0.1371	420
300	299.43	61/2.50	22.5	827	83.63	0.111	477
400	400.14	61/2.89	26	1104	111.76	0.0831	568
500	499.83	61/3.23	29.1	1379	139.6	0.0665	649
625*	626.2	91/2.96	32.6	1732	174.9	0.0531	742
800*	802.09	91/3.35	36.9	2218	224.02	0.0415	857
1000*	999.71	91/3.74	41.1	2767	279.22	0.0333	971

19/2.1mm AAAC 70sqmm DIN 48201 Bare Aluminum Conductor pictures:

19/2.1mm AAAC 70sqmm DIN 48201 Bare Aluminum Conductor package:

Test equipment:

FAQ:

1. Is your company a factory or a trade company?
Factory, more than 20 years in China

2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.

3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.

4. What’s the delivery time?
Sample order needs 3~5 days.

Formal order depends on the quantity, usually it needs 15 working days after get your payment.

5. What is your MOQ?
Generally it is 5000m.

We are China 19/2.1mm AAAC 70sqmm DIN 48201 Bare Aluminum Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
