1kv Aluminum Power Cable Unarmored PVC Sheathed 2x10mm2 IEC60502-1 IEC60332-1

1kv aluminum power cable unarmored PVC insulated PVC sheathed 2x10mm2 IEC60502-1, IEC60332-1

Construction:

Conductors: Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation: PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Colour Code Colour Code

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Application:

1kv aluminum power cable unarmored PVC insulated PVC sheathed 2x10mm2 IEC60502-1 cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

1kv aluminum power cable unarmored PVC insulated PVC sheathed 2x10mm2 IEC60502-1, IEC60332-1

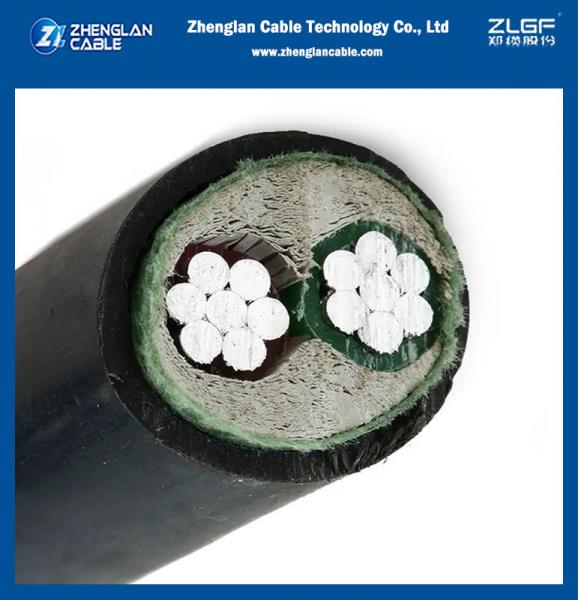

1kv aluminum power cable unarmored PVC insulated PVC sheathed 2x10mm2 IEC60502-1, IEC60332-1 Products show

Why Choose Zhenglan Cable:

• OEM/ODM services provided;
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
• Registered capital of $30 million and factory covers an area of 60,000㎡;
• Advanced test equipment and procedures, 100% inspection before factory;
• Enough stocks and the higest efficient shipping time guarranteed;
• Professional pre-sales and after-sales services provided.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
