1kv Overhead Insulated Cable Duplex Triplex Quadruplex Overhead Wire AS/NZS 3560:1

 China 1kv Overhead Insulated Cable Duplex Triplex Quadruplex Overhead Wire AS/NZS 3560:1 supplier

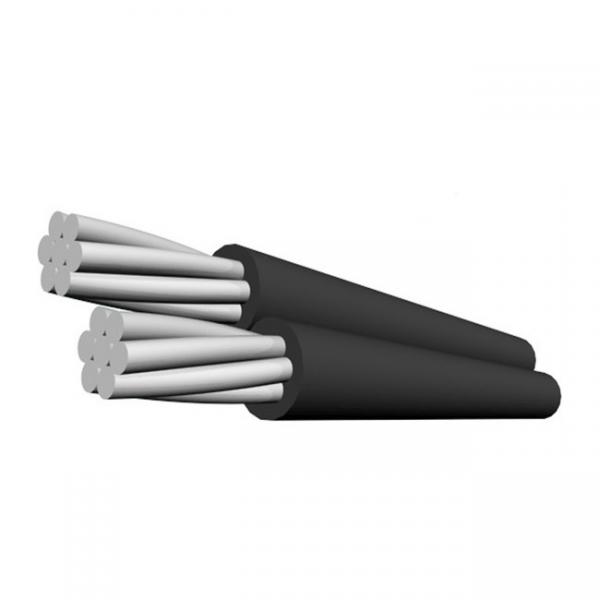

1kv Overhead Insulated Cable Duplex Triplex Quadruplex Overhead Wire AS/NZS 3560:1 image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
overhead insulated cable Cond. Al 3×50+1x50mm2, Aislados aerial bundle cable IEC60502-1

Certification :
3C,ISO 9001:2015,ISO 14001:2005

Place of Origin :
Henan, China


Price :

Payment Terms :

Supply Ability :

Delivery Time :
15-18 days

Packaging Details :
Wooden drum, wooden-steel drum, coil or plastic drum or customized

Insulation Material :

Conductor Material :

Application :

Standard :
BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6

phase cable structure :

Neutral cable structure :

1kv Overhead Insulated Cable Duplex Triplex Quadruplex Overhead Wire ABC Aluminum Service Drop AS/NZS 3560:1


For used in primary aerial cable on pole. on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These cables are an excellent technical and economic option for companies all over the world, since they feature such advantages as low manufacturing cost and ease of installation.To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.



1. Aluminum Wire, 1350-H19 for Electrical Purposes.

2. Aluminum Conductors, Concentric-Lay-Stranded.

3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

4. Concentric-Lay-Stranded 6201-T81 Conductors.

5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Insulation: PVC, XLPE, PE

Reference Standards:

GB/T 12527-2008, IEC60502, IS:14255-1995, ASNZS 3560.1.NFC 33209
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.

Core Number & Cross section area
Including 1, 2, 3, 4, 5, 1+1, 2+1, 3+1, 4+1 cores and so on, from 10mm2 to 240mm2 as follows, 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240m2.

Part of Technical Data:

Goods Description Specification mm2 Conductor No./mm Insulation Thickness mm Cable Overall Diameter mm 20ºC Conductor D.C. Resistance Ω/km Cable Weight kg/km
ABC Cable 2×10 7/1.35 1.0 9.9 3.08 69
ABC Cable 2×16 7/1.71 1.2 12.3 1.91 109
ABC Cable 2×25 7/2.16 1.2 14.8 1.20 162
ABC Cable 2×35 7/2.55 1.4 17.4 0.868 225
ABC Cable 2×50 7/3.00 1.4 20.2 0.641 308
ABC Cable 2×70 19/2.16 1.4 23.5 0.433 427
ABC Cable 2×95 19/2.55 1.6 27.3 0.320 579
ABC Cable 2×120 37/2.05 1.6 30.4 0.253 721
ABC Cable 2×150 37/2.28 1.8 34 0.206 899
ABC Cable 2×185 37/2.56 2.0 37.8 0.164 1111
ABC Cable 2×240 37/2.95 2.2 42.9 0.125 1446

Products show:

About Zhenglan Cable Technology CO., Ltd.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Our main products are
  • overhead power transmission use bare conductor(ACSR, AAC, etc)
  • 1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
  • STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
  • STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
  • 450/750V instrument use control cable (shielded or unshielded)
  • 300/300V, 300/500V, 450/750V fixed installation use building wire

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
  • Strict quality control system, excellent quality with reasonable price.

We are China 1kv Overhead Insulated Cable Duplex Triplex Quadruplex Overhead Wire AS/NZS 3560:1 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
