1KV To 35KV Al 3x95mm2+1x70mm2 Service Drop Cable XLPE/PVC/PE Insulated IEC60502

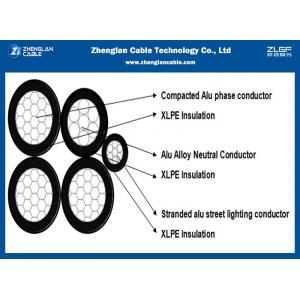

1KV To 35KV Al 3x95mm2+1x70mm2 Service Drop Cable XLPE/PVC/PE Insulated IEC60502 image
Brand Name :
Model Number :
Aluminum ABC cable
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Payment Terms :
Supply Ability :
Delivery Time :
Packaging Details :
Wooden drum, wooden-steel drum, coil or plastic drum or customized
Insulation Material :
Conductor Material :
Aliminum 1350-H19/Aluminum alloy 6201
Number of cores :
1KV to 35KV Al 3x95mm2+1x70mm2 XLPE/PVC/PE Insulated Overhead Transmission Service Drop Cable IEC60502
0.6/1kv single core XLPE covered aluminum cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire net. It improves the safety and reliance of electrified wire net.
Used primarily for overhead and distribution line, as a service drop(power pole to service entrance) as a secondary cable(Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Insulation: PVC, XLPE, PE
Overhead insulated cable Standards:
IEC60502-2, DIN VDE 0276-620, ICEA S-93-639, AS/NZS 3599, SANS 1713, NFC33-226
We can also manufacture ABC cable according to customer's special requirements.
Technical date sheets:
|No.||Description and Type of Cable||Number of Wires||Thickness of XLPE Insulation||Approx overall Diameter||Approx Weight of Cable||Breaking Load of Messenger||Maximum D.C Resistance(Ohms/Km)||AC Current Rating (Amps)|
|mm||mm||mm||Kg/KM||KN (min)||Phase||Messenger||In air at 40°C|
|With insulated messenger conductor without lighting conductor|
|1||1 C x 16 mm2 + 25 mm2 (insulated)||7||7||1.2||1.2||20||165||7||1.91||1.38||72|
|2||3 C x 16 mm2 + 25 mm2 (insulated)||7||7||1.2||1.2||22||301||7||1.91||1.38||64|
|3||1 Cx25 mm2 + 25mm2(insulated)||7||7||1.2||1.2||22.4||195||7||1.2||1.38||99|
|4||3 C x 25 mm2 + 25 mm2 (insulated)||7||7||1.2||1.2||25||390||7||1.2||1.38||84|
|5||1 Cx35 mm2 + 25mm2(insulated)||7||7||1.2||1.2||27.3||227||7||0.868||1.38||120|
|6||3 C x 35 mm2 + 25 mm2 (insulated)||7||7||1.2||1.2||27.4||486||7||0.868||1.38||105|
|7||1 Cx35 mm2 + 35mm2(insulated)||7||7||1.2||1.2||28||259||10.1||0.868||0.986||120|
|8||3 C x 35 mm2 + 35 mm2 (insulated)||7||7||1.2||1.2||28.4||518||10.1||0.868||0.986||105|
|9||1 C x 50 mm2 + 35 mm2 (insulated)||7||7||1.5||1.2||29||317||10.1||0.641||0.986||150|
|10||3 C x 50 mm2 + 35 mm2 (insulated)||7||7||1.5||1.2||32.3||692||10.1||0.641||0.986||130|
|11||3Cx70 mm2 + 50 mm2 (insulated)||7||7||1.5||1.5||37.5||939||14||0.443||0.689||155|
|12||3 C x 70 mm2 + 70 mm2 (insulated)||7||7||1.5||1.5||39||1002||19.7||0.443||0.492||155|
|13||3 C x 95 mm2 + 70 mm2 (insulated)||19||7||1.5||1.5||42.7||1237||19.7||0.32||0.492||190|
|14||3 C x 120 mmz + 70 mm2 (insulated)||19||7||1.6||1.5||46||1482||19.7||0.253||0.492||220|
|15||3 C x 150 mm2 + 70 mm2 (insulated)||19||7||1.8||1.5||50||1791||19.7||0.206||0.492||250|
Aerial bundle cable images:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
Why Choose Zhenglan Cable:
- OEM/ODM services provided
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
- Strict quality control system, excellent quality with reasonable price.
We are China 1KV To 35KV Al 3x95mm2+1x70mm2 Service Drop Cable XLPE/PVC/PE Insulated IEC60502 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.Tags: 1KV Service Drop Cable, 35KV Service Drop Cable, IEC60502 service drop cable, Overhead Insulated Cable
