1kv Xlpe Overhead Insulated Cable Single Core For Aerial IEC60502-1

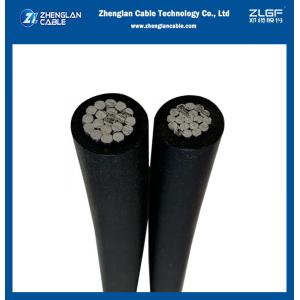

1kv Xlpe Overhead Insulated Cable Single Core For Aerial IEC60502-1 image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
1kv xlpe insulated cable for aerial use overhead insulated cable single core 1x35sqmm IEC60502-1

Certification :
ISO 9001:2015，ISO 14001:2005; CCC

Place of Origin :
Henan, China

MOQ :
1000m

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
15,000 KM/Year

Delivery Time :
10-20 days

Packaging Details :
Wooden drum, iron wooden drum or as required

Insulation Material :
XLPE

Phase cable :
Aluminum

Standard :
GB/T 12527-2008, IEC60502-1, NFC33209

structure :
AAC/XLPE

Voltage :
0.6/1KV

Port :
Qingdao or Shanghai

1kv xlpe insulated cable for aerial use overhead insulated cable single core 1x35sqmm IEC60502-1

Construction: Al/XLPE

(1) Conductor: Stranded compacted circular aluminium

(2) Insulation: XLPE

Characteristics:

– Rated voltage (Uo/U): 0.6/1(1.2)kV

– Max. conductor temperature in normal operation: 90oC

– Max. conductor temperature in

short-circuit for 5s max duration: 250oC

– Min. bend radius: 8 x D (D: overall diameter of cable)

1kv xlpe insulated cable for aerial use overhead insulated cable single core 1x35sqmm IEC60502-1 China national standard GB/T125271

Nominal cross sectional area	conductor diameter	Insulation nominal thickness	Maxinum Conductor resistance at 20℃		Minimum insulation resistance		Break load
(mm2)	mm	mm	Ω/km		MΩ.km		N
(mm2)	mm	mm	Al	Al alloy	70℃	90℃	Al	Al alloy
10	3.8	1.0	3.08	3.574	0.0067	0.67	1650	2514
16	4.8	1.2	1.91	2.217	0.0065	0.65	2517	4022
25	6	1.2	1.2	1.393	0.0054	0.54	3762	6284
35	7	1.4	0.868	1.007	0.0054	0.54	5177	8800
50	8.4	1.4	0.641	0.744	0.0046	0.46	7011	12569
70	10	1.4	0.443	0.514	0.0040	0.40	10354	17596
95	11.6	1.6	0.32	0.371	0.0039	0.39	13727	23880
120	13	1.6	0.253	0.294	0.0035	0.35	17339	30164
150	14.6	1.8	0.206	0.239	0.0035	0.35	21033	37706
185	16.2	2.0	0.164	0.190	0.0035	0.35	26732	46503
240	18.4	2.2	0.125	0.145	0.0034	0.34	34679	60329
300	20.8	2.2	0.100	0.116	0.0033	0.33	43349	75411
400	23.2	2.2	0.0778	0.0904	0.0032	0.32	55707	100548

1kv xlpe insulated cable for aerial use overhead insulated cable single core 1x35sqmm IEC60502-1 Products images:

1kv xlpe insulated cable for aerial use overhead insulated cable single core 1x35sqmm IEC60502-1 package

Why Choose Zhenglan Cable:

OEM/ODM services provided
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
Advanced test equipment and procedures, 100% inspection before factory
Enough stocks and the higest efficient shipping time guarranteed
Professional pre-sales and after-sales services provided
Strict quality control system, excellent quality with reasonable price.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Depends on the cable size and the material consumed.

We are China 1kv Xlpe Overhead Insulated Cable Single Core For Aerial IEC60502-1 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
