1x50sqmm Pvc Sheathed Low Voltage Power Cables Copper Conductor Xlpe Insulated Bs 5467

 China 1x50sqmm Pvc Sheathed Low Voltage Power Cables Copper Conductor Xlpe Insulated Bs 5467 supplier

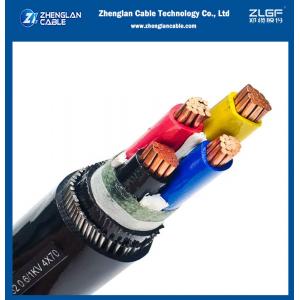

1x50sqmm Pvc Sheathed Low Voltage Power Cables Copper Conductor Xlpe Insulated Bs 5467 image

Get a Quote Email to us

Brand Name :
Zhenglan cable

Model Number :
1.1kv 3×90+1x50sqmm cu/xlpe/pvc/swa/pvc flame retardant power cable unarmored

Certification :
ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
1000 meters

Price :
0.3USD-2USD/m

Payment Terms :
L/C, T/T,

Supply Ability :
10000m/day

Delivery Time :
15days

Packaging Details :
Wooden drum, wood and steel drum,as customer’s request

Material :
CU

Insulation :
xlpe

sheath :
pvc

Core :
4core

Out Sheath Color :
Black or Customized

Cable Length :
as per requirement

Voltage :
0.6/1kv

Standard :
IEC60502-1

3×95+1x50sqmm SWA COPPER CONDUCTOR XLPE INSULATED PVC SHEATHED CABLES IEC 60502-1/ BS 5467

Application:

1.The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706-2008

Other standards such as BS7870,DIN and ICEA upon request

Construction:

Conductors: Copper , round standed or Shaped, Class 2 to IEC 60228, BS EN 60228.

Core identification
without yellow-green core
2-cores: brown, blue
3-cores: brown, black, grey
4-cores: brown, black, grey, blue
with yellow-green core
3-cores: brown, blue, yellow-green
4-cores: brown, black, grey, yellow-green
5-cores: brown, black, grey, yellow-green, blue

Noted: Insulation color as per standards or customer requirement.

Insulation:

XLPE Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Outer Sheath:

Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Operating Performance
1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90℃
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250℃
4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
6). The test voltage (A.C.): 3.5kV/5min.
7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.

Fire Performance of Cable Sheaths:

The products​​ can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Parameters:

Three cores+1(Galvanized steel wire armoured)

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm² mm mm mm mm mm mm mm mm
3×10 +6 3.6 2.8 1 1 1 1.25 1.8 21.9
3×16 +10 4.5 3.6 1 1 1 1.6 1.8 24.2
3×25 +16 5.6 4.5 1.2 1 1 1.6 1.8 27.9
3×35 +16 6.7 4.5 1.2 1 1 1.6 1.9 30.8
3×50 +25 8 5.6 1.4 1.2 1 2 2 36.4
3×70 +35 9.4 6.7 1.4 1.2 1.2 2 2.1 40.1
3×95 +50 11 8 1.6 1.4 1.2 2.5 2.3 46.3
3×120 +70 12.4 9.4 1.6 1.4 1.4 2.5 2.4 50.3
3×150 +70 13.8 9.4 1.8 1.4 1.4 2.5 2.6 55
3×185 +95 15.3 11 2 1.6 1.4 2.5 2.7 60.3
3×240 +120 17.5 12.4 2.2 1.6 1.6 2.5 2.9 67
3×300 +150 19.5 13.8 2.4 1.8 1.6 3.15 3.1 74.6
3×400 +185 22.6 15.3 2.6 2 1.8 3.15 3.4 84.1
3×500 +240 25.2 17.5 2.8 2.2 2 3.15 3.7 91.8

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
4×1.5 1.38 0.7 1.8 11 170
4×2.5 1.76 0.7 1.8 12 230
4×4 2.25 0.7 1.8 14 305
4×6 2.76 0.7 1.8 15.5 400
4×10 4.0 0.7 1.8 18 585
4×16 5.0 0.7 1.8 20 835
4×25 6.3 0.9 1.8 22 1210
4×35 7.4 0.9 1.8 24.5 1670
4×50 8.8 1.0 1.8 26.5 2250
4×70 10.6 1.1 2.0 32 3015
4×95 12.4 1.1 2.1 36.5 4085
4×120 14.0 1.2 2.3 40.5 5320
4×150 15.5 1.4 2.4 44.5 44.5 6510
4×185 17.4 1.6 2.6 51 8050
4×240 20.3 1.7 2.8 58.5 58.5 10520
4×300 22.7 1.8 3 64.5 13130
4×400 25.4 2.0 3.3 73.5 16850

1.Images

Test equipment

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 1000m.
