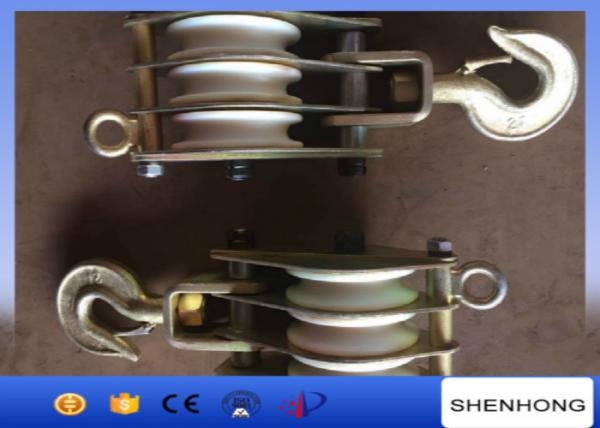

2 Ton Cable Pulling Pulley Nylon Sheave Hook Type Hoisting Block Lifting
2 Ton Cable Pulling Pulley Nylon Sheave Hook Type Hoisting Block Lifting image
Brand Name :
SHENHONG
Model Number :
QHN
Certification :
BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Piece/Pieces per Month
Delivery Time :
ten days after deposit
Packaging Details :
cartoon
Application :
construction
Used :
lifting
Rated load :
20KN
Applicable diameter of rope :
7.7-9.3mm
Weight :
2.2-3.7kg
Package :
cartoon
2 Ton Nylon Sheave Hook Type Hoisting Block Lifting Tackle Lifting Pulley
Application
It is applied in line construction to craning weight,ect. It is light because it adopts iron side panel and MC nylon sheave. The monosheave block is open.
Features:
With Aluminum Alloy side plates, MC Nylon sheaves, the block is lighter.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Technical data of 2 Ton Nylon Sheave Hook Type Hoisting Block Lifting Tackle Lifting Pulley
| Model | No. of sheaves | Fitting type | Rated Load (KN) | Outer Diameter x Width (mm) | Weight (kg) |
| QH1GN-1 | 1 | Hook fitting | 10 | Φ100 x 31 | 1.8 |
| QH2GN-1 | 2 | 10 | Φ80 x 27 | 1.8 | |
| QH3GN-1 | 3 | 10 | Φ80 x 27 | 2.1 | |
| QH1GN-2 | 1 | Hook fitting | 20 | Φ120 x 35 | 2.2 |
| QH2GN-2 | 2 | 20 | Φ100 x 31 | 2.6 | |
| QH3GN-2 | 3 | 20 | Φ100 x 31 | 3.7 | |
| QH1GN-3 | 1 | Hook fitting | 30 | Φ142 x 39 | 3.4 |
| QH2GN-3 | 2 | 30 | Φ120 x 35 | 4.5 | |
| QH3GN-3 | 3 | 30 | Φ100 x 31 | 4.6 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China 2 Ton Cable Pulling Pulley Nylon Sheave Hook Type Hoisting Block Lifting manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
