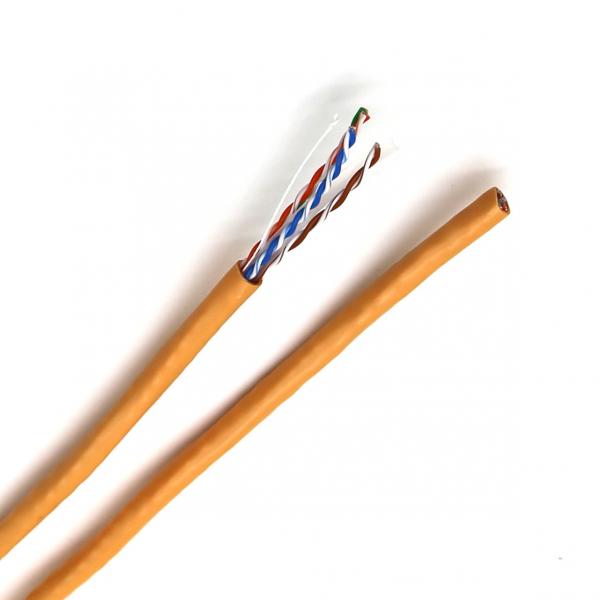

23AWG bare copper UTP network Cat 6 cable for ethernet networking
23AWG bare copper UTP network Cat 6 cable for ethernet networking image
Brand Name :
JHY CABLE
Model Number :
network cable
Certification :
CE ROHS ISO9001
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxes
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
305 meters per box or according to the customer’s request.
Conductor :
Bare copper
Conductor Size :
0.35mm–0.58mm
Core :
4 Twist Pairs
Type :
CAT6-UTP
Insulation Material :
HDPE
Insulation Diameter :
0.88-1.02mm
Jacket Material :
PE LSZH PVC
Jacket Diameter :
6.0-6.8mm
Jacket Color :
Blue / Grey/Orange or as required
Cable length :
305m/box
Function :
Data Transfer
23AWG bare copper UTP network Cat 6 cable for ethernet networking
Production Description:
1. Production Parameters:
|
Item (n) |
structure (mm) |
Insulation Thickness (mm) |
Approx overall dia. (mm) |
| UTP Cat 6 | 4×0.50 | 0.96 | 6.3 |
| UTP Cat 6 | 4×0.55 | 1.01 | 6.4 |
| UTP Cat 6 | 4×0.57 | 1.03 | 6.4 |
2. Core Identification
3. Production Features
- CAT6 1000ft Bulk UTP Plenum Rated Solid Cable Best Quality
- Cat 6 Cable Suitable for 550MHz High-Speed Data Applications;
- Cat 6 Cable Designed for Indoor /outdoor Installations;
- Flame Retardant Jacket;
- Transmission frequency: 100-350MHz
4. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
5. Application
- Ethernet;100 Base-TX;ATM; Trunk Cabling;
- Widely apply to network wiring structure and transmission media,such as audio,video,digital communication,message and so on.
6. Tabular data
Construction
| 1. Conductor material: |
Solid bare copper 0.55mm |
|
| 2. Insulation material: | HDPE | |
| 3. sheath material: | PVC | |
| 4. Cross Separator | Environment protection PE | |
| 5. Rip cord: | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 13.8 kg | 305 m per box | 42 x 42 x 24 |
Carton box |
7. Product Image
Product Package
Fluke Test Report
Product compare
Jinhuanyu product other products
8. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
9. Company information
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. Email: [email protected] Website: Http://www.sz-hy.cn |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 23AWG bare copper UTP network Cat 6 cable for ethernet networking manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
