25FT 7.6m Steel Metal Utility Pole Powder Coated16mm Thickness
25FT 7.6m Steel Metal Utility Pole Powder Coated16mm Thickness image
Brand Name :
FUTAO
Model Number :
EP031
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2 Pieces
Price :
$300 – $3,999.00/ Piece
Payment Terms :
L/C, T/T
Supply Ability :
1200 pieces every month
Delivery Time :
30-60 workdays
Packaging Details :
40HC or OT, wrap by mat or straw mat
Material :
Hot Roll Steel Q345B, GR65
Height :
15m – 30m
Thickness :
7mm -16mm
Surface Treatment :
Hot Dip Galvanized
Powder Coated :
White, Blue, Sliver, Grey or more
Wind Resistance :
160 km/h
Shape :
Round or Polygonal
30ft 9m 25ft 7.6m Steel Utility Pole Metal Utility Poles
Product Description
The products above are steel utility poles made specifically for power distribution between 10KV to 550KV.
- Products are designed and manufactured according to ANSI/TIA-222-G structural standards
- Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
- Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
- Pole shaft material : ASTM GR65,GR50,Q460 A572,S355,Q345/Q235,etc
- Material code : GB/T1591-2008,GB/T700-2006
- We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
- We provide additional assistance if required including supervision and supplementary components
- We accommodate various designs according to our customers’ specifications
Receipt inspection All materials or equipment purchased under the Contract may be inspected at the specified receiving points, and be accepted or rejected there and then by DES. Inspection will include the necessary testing for determining compliance with the Specifications. All expenses of initial acceptance tests shall be included in the Contract. The expenses of any subsequent tests due to failure of materials or equipment first offered will be charged against the Contractor.
| Type | Steel Tubular Utility Pole for Power Distribution |
| Suitable Uses | Power Distribution |
| Shape |
Tubular, Polygonal or Conical |
| Material |
Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 Other materials may be used as per request (Q460 ,ASTM573 GR65, GR50, SS400, SS490, to ST52) |
| Tolerance of Dimensions | +- 1% |
| Power | 10 KV ~550 KV |
| Safety Factor |
Safety factor for conducting wire : 8 Safety factor for grounding wire : 8 |
| Design Load in Kg | 300~ 1000 Kg applied to 50cm from pole top |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating |
| Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode. |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160Km/Hour 30m/s |
| Minimum Yield Strength | 355 mpa |
| Minimum Ultimate Tensile Strength | 490 mpa |
| Max Ultimate Tensile Strength | 620 mpa |
| Standard | ISO 9001 |
| Length per section | Within 14m once formed without slip joint |
| Welding |
Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 2 mm to 30 mm |
| Production Process | Verification of Materials→Cutting→Molding or Bending→Vertical Welding→Verification of Dimensions→Flange Welding→Hole Drilling→Calibration→Deburr Process→Galvanization or Powder Coating, Painting→Recalibration→Threading→Packaging |

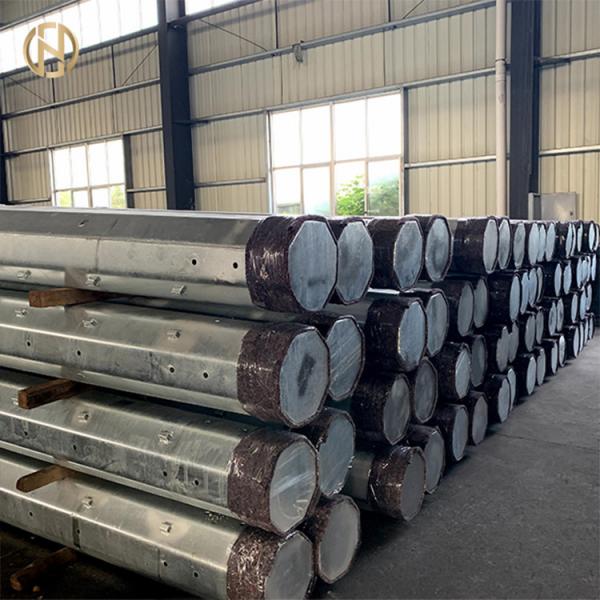

| Packaging | Our poles are usually covered by a mat or straw bale at the top and bottom. Packaging can also be done according to clients’ requirements. |
We are China 25FT 7.6m Steel Metal Utility Pole Powder Coated16mm Thickness manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
