25KV 35kV Covered Aerial Insulated Cable Multi Layer Tree Wire ACSR / XLPE / HDPE ICEA

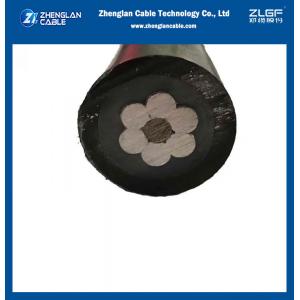

25KV 35kV Covered Aerial Insulated Cable Multi Layer Tree Wire ACSR / XLPE / HDPE ICEA image

Get a Quote Email to us

Brand Name :Zhenglan Cable

Model Number :15/25kv Aerial Insulated Cable

Certification :ISO 9001:2015，ISO 14001:2005

Place of Origin :Henan, China

MOQ :1000meters

Price :Negotiable

Payment Terms :L/C, T/T, Western Union

Supply Ability :80Km/Month

Delivery Time :15-20 days

Packaging Details :Wooden case, wooden-steel case, coil or plastic drumor customized

Name :15/25kv aerial insulated cable two layer IEC60502-2 AAC/SC/XLPE

structure :AL / SC / XLPE / HDPE

Conductor Material :Aluminum

Insulation Material :XLPE

Application :Overhead transmission use

Quality :confirm to IEC60502-2

Standard :ISO 9001:2015

25KV 35kV covered multi-layer tree wire Aerial Insulated Cable ACSR/XLPE/HDPE ICEA specifications and the following ASTM

Application:

Conductors are concentrically stranded, AAC (1350-H19), either compressed or full compact depending on conductor size, AAAC or ACSR. Available with high-density track-resistant polyethylene (HDTRPE) or Track-Resistant Crosslinked Polyethylene (XLPE) covering. Strand shield option available as shown in illustration.

The conductor material: AAC AAAC ACSR etc.

Conductor Shield: Semi conducting cross-linked polyethylene

Insulation: Cross-linked polyethylene; Colour : Natural

Sheath: Track resistant cross-linked polyethylene; Colour : Black

Classification:

Normal operation 90 °C
Emergency overload conditions 130 °C
Short circuit conditions 250°C

Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA

Nominal Sectional Area mm2	Minimum Number of wire NO	Diameter of Conductor (approx.) mm	Thickness of Insulation mm	Thickness of sheath mm	Overall Diameter (approx.) mm	Maximum DC. conductor resistance at 20°C Ω / km	Allowable ampacities in free air at 40°C ambient A	Cable weight (approx.) kg / km
25	7	5.90	3.18	3.18	20.0	1.2000	119	317
35	7	6.95	3.18	3.18	21.0	0.8680	149	390
50	7	8.33	3.18	3.18	22.0	0.6410	186	440
70	18	9.73	3.18	3.18	24.5	0.4430	229	540
95	18	11.45	3.18	3.18	26.0	0.3200	279	640
120	18	12.95	3.18	3.18	27.0	0.2530	321	740
150	18	14.27	3.18	3.18	29.5	0.2060	371	850
185	34	15.98	3.18	3.18	31.0	0.1640	429	990
240	34	18.47	3.18	3.18	33.5	0.1250	520	1,190

minal Sectional Area mm2	Minimum Number of wire NO	Diameter of Conductor (approx.) mm	Thickness of Insulation mm	Thickness of sheath mm	Overall Diameter (approx.) mm	Maximum DC. conductor resistance at 20°C Ω / km	Minimum insulation resistance at 15.6°C MΩ-km	Allowable ampacities in free air at 40°C ambient A	Cable weight (approx.) kg / km
25	6	5.90	4.45	3.18	22.5	1.2000	3,153	118	393
35	6	6.95	4.45	3.18	24.5	0.8680	2,890	148	443
50	6	8.33	4.45	3.18	25.5	0.6410	2,606	184	517
70	12	9.73	4.45	3.18	27.5	0.4430	2,375	227	599
95	15	11.45	4.45	3.18	29.0	0.3200	2,144	276	711
120	15	12.95	4.45	3.18	31.0	0.2530	1,952	318	831
150	15	14.27	4.45	3.18	32.5	0.2060	1,830	367	933
185	30	15.98	4.45	3.18	33.5	0.1640	1,694	425	1,073
240	30	18.47	4.45	3.18	36.5	0.1250	1,529	515	1,293
