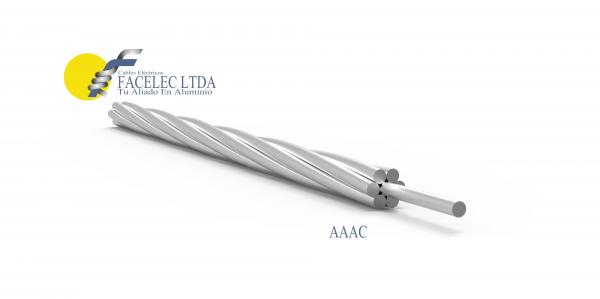

2AWG Greeley Azusa Canton Silver Aluminum Alloy Conductor AAAC Conductor

 China 2AWG Greeley Azusa Canton Silver Aluminum Alloy Conductor AAAC Conductor supplier

2AWG Greeley Azusa Canton Silver Aluminum Alloy Conductor AAAC Conductor image

Get a Quote Email to us

Brand Name :
Sanwu

Model Number :
AAAC

Certification :
TUV

Place of Origin :
Henan

MOQ :
1000M

Price :
0.1-15USD per meter

Supply Ability :
200 tons per day

Packaging Details :
Non returnable wooden / steel reels

Delivery Time :
1-15days

Materials :
1350 Alloy

Application :
Cable construction

Rates :
0.6/1kv

Standard :
ASTM, BS, IEC, DIN

Type :
LV

Conductor material :
Aluminum

Insulation material :
Bare

Package :
Wooden Drum

Warranty :
2 years

Insulation :
Bare

Size :
2AWG Greeley Azusa Canton

2AWG Greeley Azusa Canton Silver Aluminum Alloy Conductor AAAC Conductor

Sanwu Cable AAAC All aluminium alloy conductor is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical textures exist.

STANDARD of 2/0 AWG All aluminium alloy conductor

Basic design to ASTM B399 / B399M standard.

CONSTRUCTION of 2/0 AWG All aluminium alloy conductor

AAAC cable consists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded. This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable international standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.

Characteristics

2.1 AAAC (All Aluminum Alloy Conductor), being lighter, referred to conductors that have higher strength but lower conductivity than pure Aluminum.

2.2 Having lower breaking loads than ACSR, AAAC becomes particularly favorable when ice and wind loadings are low.

2.3 All aluminum alloy stranded conductor cable is fit for power transmission and distribution.

2.4 We can supply this conductor according to different recognized standards, and customers’ special specifications also can be satisfied.

2.5Standard: GB1179, IEC61089, BS3242, DIN48201, ASTMB399

Applications
Conductor(AAAC) have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics. The conductor have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity.

ELECTRICAL PROPERTIES of 2/0 AWG All aluminium alloy conductor

Density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
Resistivity@20°C 0.0326 Ohms mm2 /m
Linear Expansivity 23 x10-6 (°C)

SERVICE CONDITIONS of 2/0 AWG All aluminium alloy conductor

Ambient Temperature -5°C – 50°C
Wind Pressure 80 – 130kg/m2
Seismic Acceleration 0.12 – 0.05g
Isokeraunic Level 10 – 18
Relative Humidity 5 – 100%

CONSTRUCTION PARAMETERS of 2/0 AWG All aluminium alloy conductor

Nominal Area Stranding Overall Weight Rated Electrical Current
Diameter Strength Resistance Rating*
AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
6 13.2 7/1.55 4.65 36.2 4.18 2.5361 69
4 21.1 7/1.96 5.88 57.9 6.69 1.586 93
2 33.5 7/2.47 7.41 92 10.6 0.9987 123
0 53.5 7/3.12 9.36 146.8 17 0.62592 165
2/0 67.3 7/3.50 10.5 184.8 20.4 0.49738 190
3/0 84.9 7/3.93 11.79 233 25.7 0.3945 219
4/0 107 7/4.42 13.26 294.7 32.5 0.31188 253
250 126 19/2.91 14.55 346.7 38.8 0.26509 280
300 152 19/3.19 15.95 416.7 46.6 0.22059 313
350 178 19/3.45 17.25 487.3 52 0.1886 345
400 203 19/3.69 18.45 557.5 59.5 0.16486 375
450 228 19/3.91 19.55 626 66.8 0.14683 402
500 253 19/4.12 20.6 695 74.2 0.13224 429
550 279 37/3.10 21.7 766.2 83.9 0.11995 455
600 303 37/3.23 22.61 831.9 91 0.11049 478
650 330 37/3.37 23.59 905.5 94.9 0.1015 504
700 354 37/3.49 24.43 971.2 101 0.09464 525
750 381 37/3.62 25.34 1045 109 0.08796 549
800 404 37/3.73 26.11 1109 116 0.08285 569
900 456 37/3.96 27.72 1250 131 0.07351 612
1000 508 37/4.18 29.26 1393 146 0.06597 653
1250 631 61/3.63 32.67 1732 179 0.05306 743
1500 759 61/3.98 35.82 2082 215 0.04414 827
1750 886 61/4.30 38.7 2431 251 0.03781 904

Luoyang Sanwu Cable Co., Ltd., with registered capital of 100 million RMB, is a high-tech development company for scientific research, industry producing and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.
Sanwu cable owns variously advanced equipment and large quantities of high skilled professionals. With complete management system, advanced production process, strict testing procedure and reliable product quality, we have successively got IS09001, IS014001,OHSAS18001,TUV Certificate, CCC(China Compulsory Certification), the national industrial production license and so on.
In terms of quality, It is highly controlled by our company to ensure that all the products we sell meet your requirements and give you reassurance with excellent after-sale service.In terms of service, we are focusing on your need, we concern what you concern and request what you request to provide a more satisfied service.

FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
