3 Core XLPE Insulated Copper Unarmoured Cable 50mm 95mm 120mm 185mm 240mm 300mm 400mm IEC60502

 China 3 Core XLPE Insulated Copper Unarmoured Cable 50mm 95mm 120mm 185mm 240mm 300mm 400mm IEC60502 supplier

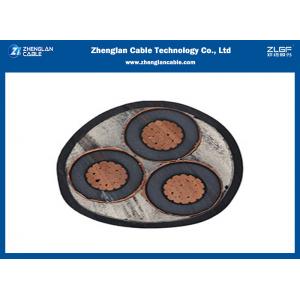

3 Core XLPE Insulated Copper Unarmoured Cable 50mm 95mm 120mm 185mm 240mm 300mm 400mm IEC60502 image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
Multiconductor XLPE insulated copper cable IEC60502-2

Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T,, Western Union, Western Union

Delivery Time :
7-10 working days

Packaging Details :
Wooden drum, wood and steel drum,as customer’s request

Material :
CU

Out Sheath Color :
Black

Core :
3 core

Cable Drum Length :
as per request

characted :
armored

Specification :
cu/xlpe/sta/swa/pvc

Name :
Multiconductor XLPE insulated copper cable EC60502-2

Referece standard :
IEC60502-2

Port :
Shanghai or Qingdao

Volatage :
3.6/6( 7.2) kv, 10kv, 11kv, 15kv, 33kv,35kv and so on

3 CoreS XLPE Insulated Copper unarmoured Cable 50mm 95mm 120mm 185mm 240mm 300mm 400mm IEC60502

APPLICATIONS:

Medium voltage power cable is usually for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

STANDARD:

IEC 60502 Part 2(3.6/6( 7.2) kv, 10kv, 11kv, 15kv, 33kv,35kv and so on)

Cable Construction

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.

Conductors

Either aluminium or copper conductors are used. Conductors will be circular, compacted & stranded and shall comply with IEC 60228 class 2.

Conductor Screen

Semi-conductor

Insulation

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Armour type: Galvanized steel wires (SWA)or Galvanized steel tape(STA)

Metallic Screen

Copper Tape Screen or Copper wire & copper tape Shield

Laying-Up

Polypropylene strings.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE. our

medium voltage cables are normally supplied with red PVC over sheaths complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.

Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.

Technical parameters:

Three core 6/10kv without armor

Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 3.4 0.1 16 14.3 1.6 41 2400 1900
35 7.10 3.4 0.1 16 15.3 1.6 43 2800 2200
50 8.25 3.4 0.1 16 16.5 1.7 46 3400 2500
70 9.90 3.4 0.1 16 18.1 1.7 50 4200 2900
95 11.7 3.4 0.1 16 19.9 1.8 54 5300 3400
120 13.3 3.4 0.1 16 21.3 1.8 57 6200 3900
150 14.3 3.4 0.1 25 22.5 1.9 60 7200 4400
185 16.3 3.4 0.1 25 24.5 1.9 64 8600 5100
240 18.7 3.4 0.1 25 26.9 2.0 70 10700 6100
300 20.9 3.4 0.1 25 29.1 2.1 75 12900 7100
400 23.7 3.4 0.1 25 31.9 2.2 81 15900 8500

Three core 8.7/15kv without armor

Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 4.5 0.1 16 16.5 1.7 46 3500 2400
35 7.10 4.5 0.1 16 17.5 17 48 3800 2600
50 8.25 4.5 0.1 16 18.7 1.7 51 4400 3000
70 9.90 4.5 0.1 16 20.3 1.8 55 4200 2900
95 11.7 4.5 0.1 16 22.1 1.8 59 5300 3400
120 13.1 4.5 0.1 16 23.5 1.8 62 6400 4000
150 14.3 4.5 0.1 25 24.7 1.9 65 7400 4500
185 16.3 4.5 0.1 25 26.7 1.9 69 10000 5800
240 18.7 4.5 0.1 25 29.1 2.0 75 12200 6800
300 20.9 4.5 0.1 25 31.3 2.1 80 14400 7900
400 23.7 4.5 0.1 35 34.1 2.2 87 17500 9300

Products show:

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Us:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China 3 Core XLPE Insulated Copper Unarmoured Cable 50mm 95mm 120mm 185mm 240mm 300mm 400mm IEC60502 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
