300/500V 2 & 3 Cores Proof Wire/ Cu Conductor Fire Resistant Cable with PVC Insulated /Test voltage: 2000V

 China 300/500V 2 & 3 Cores Proof Wire/ Cu Conductor Fire Resistant Cable with PVC Insulated /Test voltage: 2000V supplier

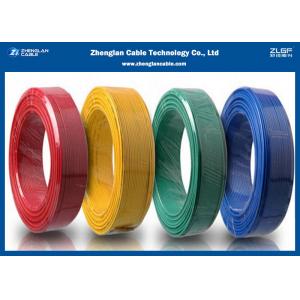

300/500V 2 & 3 Cores Proof Wire/ Cu Conductor Fire Resistant Cable with PVC Insulated /Test voltage: 2000V image

Get a Quote Email to us

IEC standard H05VVH-R 2*1.5mm² PVC insulated PVC jacket flat copper wire

Application :
electrical appliances, instrument and telecommunication device with rated voltage up to and including 300/500V. Maximum temperature allowance when the cables are for long term use: temperature shall not exceed 70°C.

Core number: 2core, 3core

Conductor: Solid or Stranded Annealed copper/ aluminum

Insulation: PVC insulation
Outer sheath: PVC sheath.

Rated voltage: 300/500V

Test voltage: 2000V

Fire Resistant Cable Physical characteristics

Max working temperature: 70°C

Mounting temperature: 0°C-+40°C

Fire Resistant Cable Minimum bending radius:

For cable with diameter below 25mm, allowed bending

radius should not be less than 4D;

For cable with diameter above and including 25mm,

allowed bending radius should not be less than 6D;

Standard: IEC227-4 or JB/T8734.2-2016

Packing: 100m per roll (per coil or plastic reel, as your request)


Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.

ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.

There are 3 grades of fire prevention available which are

Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.

Grade B Except the insulation material, all other materials are flame retardant.

Grade C Only the sheath material is flame retardant

NH cable(fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.

LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.

Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.

Technical Sheet:

Nom. Cross Section Area (mm²) Approx O.D mm Thickness of insulation Thickness of sheath 20℃max. Conductor resistance (Ω/km) 70℃min. Insulation resistance(mΩ/km)
2×0.75 4.6×7.1 0.6 0.9 24.5 0.013
2×1.0 4.8×7.4 0.6 0.9 18.1 0.012
2×1.5 5.3×8.5 0.7 0.9 12.1 0.012
2×2.5 6.2×10.1 0.8 1.0 7.41 0.010
2×4.0 6.7×11.1 0.8 1.0 4.61 0.0087
2×4.0 6.9×11.5 0.8 1.0 4.61 0.0083
2×6.0 7.5×12.5 0.8 1.1 3.08 0.0074
2×6.0 7.8×13.0 0.8 1.1 3.08 0.0070
2×10.0 9.5×16.2 1.0 1.2 1.83 0.0067
3×0.75 4.6×9.6 0.6 0.9 24.5 0.0013
3×1.0 4.8×10.1 0.6 0.9 18.1 0.0012
3×1.5 5.3×11.7 0.7 0.9 12.1 0.0011
3×2.5 6.2×14 0.8 1.0 7.41 0.0010
3×4.0 7.0×15.8 0.8 1.0 4.61 0.0087
3×4.0 7.1×16.3 0.8 1.0 4.61 0.0083
3×6.0 7.5×17.5 0.8 1.1 3.08 0.0074
3×6.0 7.8×18.2 0.8 1.1 3.08 0.0070
3×10.0 9.5×23 0.8 1.2 1.83 0.0067

Products show


1.What is your quality control?
-Quality is our soul and culture.We have 100%strict inspection and testing before shipment.We will return the money to you if there is quality problem.
2.Can you accept small order?
-Yes,small order is available in our company.We support new project of our customers as we know business is always from small to big. Your sucess is my business.
3.Can I order samples before placing the bulk order?
-Yes,samples is certainly for your test before the bulk order.It is normal process,we always deal with other clients.
However,we will charge for a small amount of deposit in case the investment on new samples.But please donot worry,the sample deposit will refund to you when bulk order fixed.
4.What is the lead time for samples?
-About sample making,it usually takes 7-15days include testing to make sure its excellent.
If urgently,please kindly let us know,we will do our best to work overtime to speed up it.
5.Can you supply customized products and logo?
-Yes,of course we can.We supply OEM&ODM service.You can send us your drawing.
You have the idea,we turn it into excellent product for you.

We are China 300/500V 2 & 3 Cores Proof Wire/ Cu Conductor Fire Resistant Cable with PVC Insulated /Test voltage: 2000V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
