300/500V 6 Core Flexible Cable , Power Chain Soft Robotics Cable For Machine

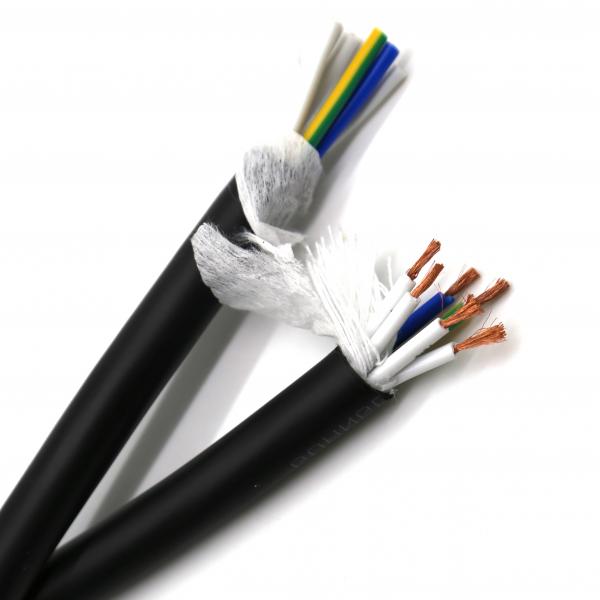

300/500V 6 Core Flexible Cable , Power Chain Soft Robotics Cable For Machine image
Brand Name :
JHY CABLE
Model Number :
Robotic Flexible Cables-02
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
30 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-10day
Packaging Details :
100m/200m/box
Product name :
Robotic flexible cable
Conductor :
OFC
Insulation :
Special mix PVC
Jacket :
Special modified PVC
Flexural life :
15 000 000
Application :
Machine
Flexible 6 Core Wire 300/500V Power Chain Soft Cable Flexible Robotics Cable
Production Description:
1. Production Application
This cable is designed for applications requiring high bending and bending continuous motion and is widely used in: towline systems, robots and mobile drive systems. The outer sheath material has the characteristics of wear resistance, waterproof solution, antibacterial and flame retardant, which makes the advantage of the cable in the drag chain system to be maximized.
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, UL,CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
| Special mix PVC | |||
4. CHARACTERISTICS
Multiple ultra-fine fine stranded high purity copper wires, complying with vde0295 / iec60228 class 6 standard
绝缘:特殊混合PVC绝缘
Insulation: special mixed PVC insulation
颜色:2芯蓝,棕；3芯蓝,棕,黄/绿；4芯蓝,棕,黄/绿,黑；5芯蓝,棕,黄/绿,黑,灰；6芯蓝,棕,黄/绿,黑,灰,白；7芯蓝,棕,黄/绿,黑,灰,白,红；8芯蓝,棕,黄/绿,黑,灰,白,红,绿；9芯蓝,棕,黄/绿,黑,灰,白,红,绿,橙；10芯蓝,棕,黄/绿,黑,灰,白,红,绿,橙,黄；12芯及以上白色印数字.
Color: 2-core blue, brown; 3-core blue, brown, yellow / green; 4-core blue, brown, yellow / green, black; 5-core blue, brown, yellow / green, black, gray, white; 7-core blue, brown, yellow / green, black, gray, white, red; 8-core blue, brown, yellow / green, black, gray, white, red, green; 9-core blue, brown, yellow / green, black, gray, white, red, green, orange; 10 core blue, brown , yellow / green, black, gray, white, red, green, orange, yellow; 12 core and above white printed numbers.
Cotton thread acts on tensile resistance
无纺布作用于隔离导体绝缘与护套以及固定导体
Non woven fabric acts on insulation and sheath of isolated conductor and fixed conductor
护套:特殊改性PVC料
Sheath: special modified PVC material
额定电压:截面小于等于0.3平方毫米:300/300V,截面大于等于0.5平方毫米:300/500V
Rated voltage: Section less than or equal to 0.3mm2: 300 / 300V, section greater than or equal to 0.5mm2: 300 / 500V
使用温度范围:固定安装:-10摄氏度~80摄氏度,移动安装:-0摄氏度~70摄氏度
Operating temperature range: fixed installation: – 10 ℃ ~ 80 ℃, mobile installation: – 0 ℃ ~ 70 ℃
Minimum bending radius: fixed installation: 5 * cable outer diameter; mobile installation: when the stroke is less than or equal to 10 meters, the bending radius is 7.5 * D; when the stroke is more than or equal to 10 meters, the bending radius is 10 * D
Packing details:
1) Packing length: 100m/roll other length are available according to client's requests
2) Inner packing: wooden reel, plastic reel, and paper reel available
3) Outer packing: carton box, pull out box, pallet available
4) Other packing available according to client's requests
Delivery details: shipped in 30 days after payment
Lead time:
| Quantity(box) | 10 | 100 |
| EST.time(day) | 3-5 | 5-15 |
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below:
Our entire team can serve you and look forward to working with you.
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 300/500V 6 Core Flexible Cable , Power Chain Soft Robotics Cable For Machine manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
