300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire

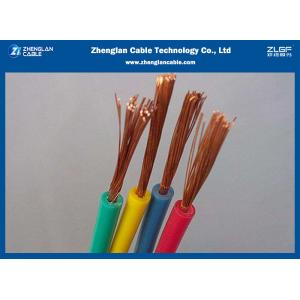

300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire image
Brand Name :
Zhenglan cable
Model Number :
RV/Single wire
Certification :
3C，ISO 9001:2015，ISO 14001:2005; CE
Place of Origin :
Henan, China
MOQ :
20km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 Million one month
Delivery Time :
15-20 days
Packaging Details :
Rolls or Customerised
Conductor :
99.99% oxygen free copper
Sheath :
PVC insulated
Application :
Use for Home or Building
Colour :
Black, red, bule,yellow or Customerised
Core :
1
Running voltage :
300/500v
Structure :
Cu/PVC
300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire
Application:
RV cable is widely used in industrial distribution field. It is especially suitable for flexible installation places with stricter requirements, such as electronic control cabinets, distribution boxes and various low-voltage electrical equipment. It can be used for transmission of power, electrical control signals and switching signals. RV wire and cable are designed with soft structure. The bending radius of conductor is small, and it is suitable for wet and oily installation places.
RV Cable Data Sheet
300/500V
| Nominal section area(mm²) | No ./Dia of Strand (mm) |
Nom. Thickness of insulation (mm) |
Average OD Max. (mm) |
Max. DC conductor resistance at 20℃ (Ω/km) |
Min. Insulating resistance at 70℃ (MΩ·km) |
| 1*0.5 | 16/0.2 | 0.6 | 2.6 | 9.1 | 0.013 |
| 1*0.75 | 24/0.2 | 0.6 | 2.8 | 12.2 | 0.011 |
| 1*1.0 | 32/0.2 | 0.6 | 3.0 | 15.1 | 0.010 |
RV-90℃
| Nominal section area(mm²) | Core no./dia(mm) |
Max diameter (mm) |
Insulation thickness (mm) |
Reference weight (kg/km) |
90℃Minimum insulation electric resistance(mΩ/km) |
| 1*0.5 | 16/0.2 | 2.5 | 0.6 | 10.2 | 0.013 |
| 1*0.75 | 24/0.2 | 2.7 | 0.6 | 13.5 | 0.012 |
| 1*1.0 | 32/0.2 | 2.8 | 0.6 | 16.4 | 0.010 |
| 1*1.5 | 30/0.25 | 3.4 | 0.7 | 21.4 | 0.009 |
| 1*2.5 | 49/0.25 | 4.1 | 0.8 | 34.5 | 0.009 |
450/750V
| Nominal section area(mm²) | No ./Dia.of Strand mm |
Nom. Thickness of insulation mm |
Average OD (Max.) mm |
Max. DC conductor resistance at 20℃ Ω/km |
| 1*1.5 | 30/0.25 | 0.7 | 3.5 | 13.3 |
| 1*2.5 | 50/0.25 | 0.8 | 4.2 | 7.98 |
| 1*4 | 77/0.26 | 0.8 | 4.8 | 4.95 |
| 1*6 | 78/0.31 | 0.8 | 6.3 | 3.30 |
| 1*10 | 84/0.39 | 1.0 | 7.6 | 1.91 |
| 1*16 | 133/0.39 | 1.0 | 8.8 | 1.21 |
| 1*25 | 189/0.41 | 1.2 | 11.0 | 0.78 |
| 1*35 | 259/0.41 | 1.2 | 12.5 | 0.554 |
| 1*50 | 361/0.41 | 1.4 | 14.5 | 0.386 |
| 1*70 | 337/0.51 | 1.4 | 17.0 | 0.272 |
| 1*95 | 494/0.49 | 1.6 | 17.5 | 0.206 |
300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire pictures:
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
About us
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
We are China 300/500v Low Smoke Zero Halogen Cable , Flame Retardant Single Core Non Sheathed Flexible Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
