300/500V NYY NYM PVC Insulated Cable PVC Jacket House Building IEC 60227 GB 5023

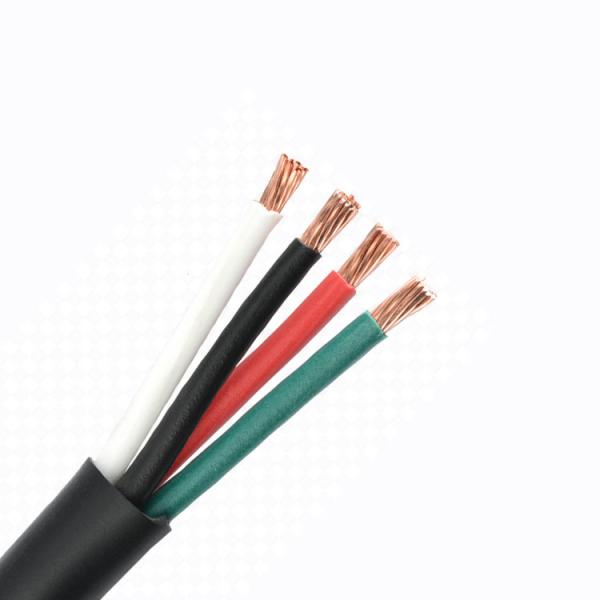

300/500V NYY NYM PVC Insulated Cable PVC Jacket House Building IEC 60227 GB 5023 image
Brand Name :
JHY CABLE
Model Number :
BVV cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 kilometer/ day
Delivery Time :
7~10 working days
Packaging Details :
100 meters per roll or according to the customer’s request.
Conductor :
Solid or Stranded bare copper
No of Core :
1 to 4 cores
Nominal cross seciton :
0.75mm2 to 630mm2
Insulation :
PVC
Color :
Red, Green, Yellow, Blue, Black or others
Rated Voltage :
300/500V
Operating Temperature :
-15℃-70℃
Standard :
IEC 60227, GB 5023
Application :
House wiring cable. Installation cable
Structure :
Cu/PVC/PVC
300/500V PVC Sheathed 2 core NYM-J Electrical cable solid bare copper power cable
| Applications: | House wiring cable. Installation cable. |
| Conductors: |
Conductor material Cu, bare. Green and Yellow available please see table below. |
| Core colours: |
1 core: Green / Yellow 3 core: Green/Yellow, Blue, Brown 4 core: Green/Yellow, Brown, Black and Grey 5 Core: Green/Yellow, Blue, Brown, Black and Grey 7 core: Numbered |
| Insulation: | PVC |
| Sheath/Jacket: | PVC |
| Colour: | Grey |
| Voltage: | Nominal voltage U0 300 V, Nominal voltage U 500 V |
| Max. conductor temperature: | 70 °C |
| Operating temperature: | Flexible: 5°C – 70 °C, Fixed: 40°C – 70 °C |
| Minimum bending radius: |
1 core: 15 x diameter 3 core and above: 4 x overall diameter |
| Max short circuit temp: | 160 °C |
| Standards: | Flame retardant Acc. EN 50265-2-1 |
Nym-j cable and Nym-o Specification Sheet:
| Construction No. x mm2 |
Outer Diameter cca. mm |
Cu Weight kg / km |
Cable weight cca. kg / km |
| 1 x 1.5 | 5,1 | 14,4 | 40 |
| 1 x 2.5 | 5,7 | 24 | 65 |
| 1 x 4 | 6,3 | 38 | 80 |
| 1 x 6 | 6,8 | 58 | 105 |
| 1 x 10 | 8 | 96 | 155 |
| 1 x 16 | 9,1 | 154 | 230 |
| 2 x 1.5 | 8,8 | 29 | 115 |
| 2 x 2.5 | 10 | 48 | 145 |
| 3 x 1.5 | 8,5 | 43 | 120 |
| 3 x 2.5 | 9,9 | 72 | 165 |
| 3 x 4 | 10,8 | 115 | 265 |
| 3 x 6 | 12,2 | 173 | 315 |
| 4 x 1.5 | 9,3 | 58 | 145 |
| 4 x 2.5 | 10,7 | 96 | 205 |
| 4 x 4 | 12,8 | 154 | 305 |
| 4 x 6 | 13,8 | 230 | 385 |
| 4 x 10 | 16,8 | 384 | 605 |
| 4 x 16 | 19,2 | 614 | 1025 |
| 4 x 25 | 24 | 960 | 1580 |
| 4 x 35 | 26 | 1344 | 2075 |
| 5 x 1.5 | 10,2 | 72 | 170 |
| 5 x 2.5 | 11,7 | 120 | 245 |
| 5 x 4 | 13,9 | 192 | 370 |
| 5 x 6 | 15,1 | 288 | 460 |
| 5 x 10 | 18,3 | 480 | 740 |
| 5 x 16 | 23,6 | 68 | 1275 |
| 5 x 25 | 28,5 | 1200 | 1945 |
2. Company information
| OUR ADVANTAGE | |
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
|
We are China 300/500V NYY NYM PVC Insulated Cable PVC Jacket House Building IEC 60227 GB 5023 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
