300/500V PVC Insulated Flexible Cable For Building Or Housing

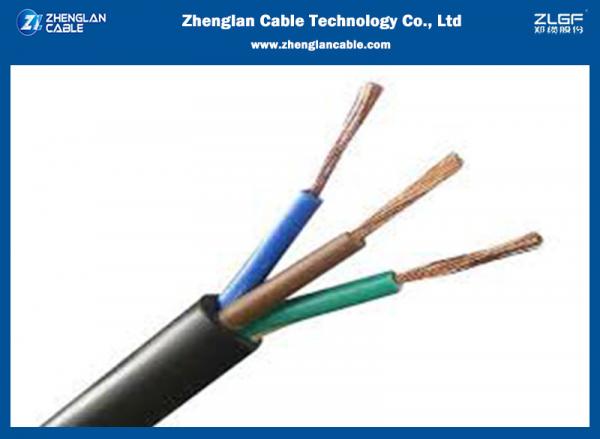

300/500V PVC Insulated Flexible Cable For Building Or Housing image
Brand Name :
Model Number :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Payment Terms :
Delivery Time :
Packaging Details :
100m/roll, with wooden box, as customer’s request.
Conductor Material :
99.99% oxygen-free Copper
used in the switch control
Service Life :
Running Voltage :
300/300V, 300/500V, 450/750V;
Qingdao or Shanghai
Flexible Cable PVC Insulated And Jacket For Building Or Housing 300/500V ISO 9001:2015
Mainly used in power lines, control lines and signal transmission lines for electrical appliances, instrumentation, electronic equipment and automation devices, specifically used in anti-theft alarm systems, building intercom systems, etc.
Conductor: flexible conductor class5 (GB/T 3956 class 5 or IEC60228.5)
Core number: 2core to 41core
Insulation: compound PVC
Outer sheath:compound PVC
300/500V (GB/T5023.3-2008 or 60227 IEC52)
Service temperature: -30~ +70℃
Bending radius: 15D
Packaging: 100m/roll or as request
Remarks: Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.
There are 3 grades of fire prevention available which are
Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.
Grade B Except the insulation material, all other materials are flame retardant.
Grade C Only the sheath material is flame retardant
NH cable (fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.
LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.
Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.
Core number/sectional area
|Insulation thickness(mm)||Outer sheath thickness(mm)||Outer diameter(mm)||70℃minimum insulation resistance(mΩ/km)|
