3+1 Core Steel Wire Armor N2XBY Cable PVC Inner Sheath For Underground

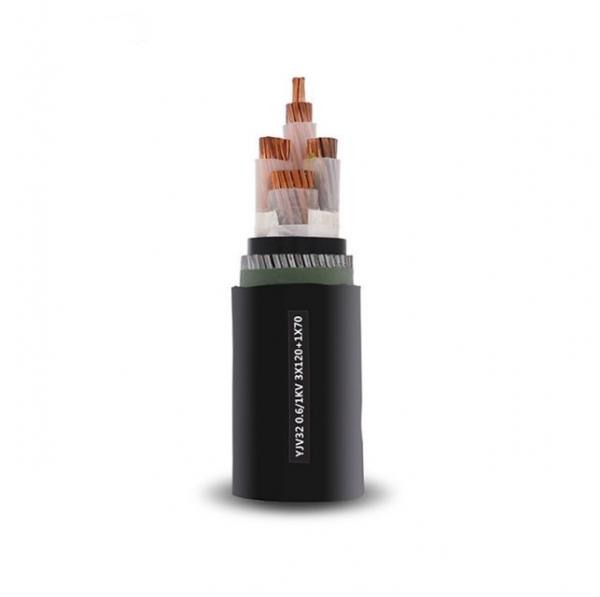

3+1 Core Steel Wire Armor N2XBY Cable PVC Inner Sheath For Underground image
Brand Name :
Nuoxing
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000 meters
Price :
USD 1-100
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Product Name :
3+1 Core PVC Inner Sheath Low Voltage Cable Power
Conductor material :
Copper
Insulation material :
XLPE OR PVC
Application :
Construction,Underground,Industrial
Type :
Low Voltage
Jacket :
PVC
Standard :
IEC60502
Armor :
Steel tape armor
3+1 Core Steel Wire Armored PVC Inner Sheath N2XBY Low Voltage Cable Power
Application:
N2XBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.
Construction:
Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polietileno reticulado XLPE
3. Inner sheath:Polyvinyl chloride PVC
4. Armour: Non-magnetic steel-tape
5. Outer sheath: Polyvinyl chloride PVC
1. The cable temperature should not be lower than 0℃ when laying, and the environment should be lower than 0℃, so the cable should be preheated.
2. The bending radius of the laying is not less than 10 times the outer diameter of the cable.
3. After the cable is laid, it should undergo a DC withstand voltage test for 15 minutes and a test voltage of 3.5KV.
4. Center distance when single-core cables are laid in parallel: 185mm2 and below is twice the cable diameter, 240mm2 and above is 90mm.
5. Ambient temperature: 30℃.
6. Higher allowable working temperature of conductive core: 70℃.
7. Correction coefficients for downloading flow at different ambient temperatures:
8. When single-core cables are laid without contact, the center distance is twice the cable diameter.
9. Ambient temperature: 25℃.
10. Higher allowable working temperature of conductive core: 70℃.
11. Soil thermal resistance coefficient: 1.0℃m/W.
12. Directly buried depth: 0.7m.
Specificaiton:
| Product name | Low Voltage Electric Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
FAQ:
Q1. Are you trading company or manufacturer ?
A: We are professional manufacture with our own independent export rights.
Q2. What if I don’t find the type and size of cable I need on this page?
A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.
Q3. Can you produce according to the samples ?
A: Yes, we can produce by your samples or technical drawings.
Q4. How long is you delivery time ?
A: Depends on your quantity, normally 1-3 weeks.
We are China 3+1 Core Steel Wire Armor N2XBY Cable PVC Inner Sheath For Underground manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 3+1 Core N2XBY Cable, low voltage electrical cable, PVC Inner Sheath steel wire armour, Steel Wire Armor N2XBY CableSimilar Or Related
