33kV XLPE Insulated MV Power Cable , Copper Power Cable 400 mm2 500 mm2
33kV XLPE Insulated MV Power Cable , Copper Power Cable 400 mm2 500 mm2 image
Brand Name :
Tano Cable
Model Number :
MV power cable
Certification :
ISO
Place of Origin :
China
MOQ :
1000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100km per month
Delivery Time :
5-20 working days
Packaging Details :

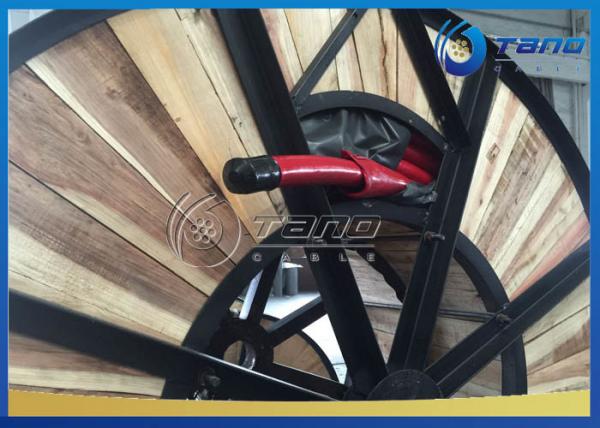

By wooden drum, steel-wooden drum and steel drum with strong protection to suit for the long-distance delivery
material :
copper underground cable
application :
underground
conductor :
copper wire
insulation :
XLPE
sheath :
PVC
voltage :
33kV
Tano Cable 33kV XLPE Insulated AWA Armoured Single Core 400 mm2 500 mm2 Copper Underground Cable
Standard
BS6622
Conductor
Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Conductor screen
Semi-conducting material
Insulation
XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
Insulation Screen
Semi-conducting material
Metallic Screen
Individual and overall copper tape screen to BS6622
Filler
PETP (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
PVC (Polyvinyl Chloride) Type TM1 to BS7655
Armouring
Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA)
Sheath
PVC (Polyvinyl Chloride) Type TM1 to BS7655
Colour
Red or Black
Voltage Rating
19000/33000V
Temperature Rating
0°C to +90°
Minimum Bending Radius
Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
Technical Specification
| 18/30V XLPE Insulated Armoured Cable Single Core | ||||||||||||||||
| Conductor | Thickness of Insulation | Thickness of separation sheath | Diameter or thickness of armour | Thickness of outer sheath | Approx. Overall Diameter | Max. Conductor Resistance at 20℃ | Approx. Weight of Cable | |||||||||
| Nom. cross-sectional area | Construction | Nom. Diameter | AWA | DATA | AWA | DATA | AWA | DATA | Copper | Aluminum | Copper | Aluminum | ||||
| AWA | DATA | AWA | DATA | |||||||||||||
| (mm²) | (No./mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Ω/km) | (Ω/km) | (kg/km) | (kg/km) | (kg/km) | (kg/km) |
| 50 | compact | 8.1 | 8 | 1.2 | 2 | 0.5 | 2.2 | 2.1 | 41 | 37 | 0.387 | 0.641 | 2140 | 1720 | 1840 | 1380 |
| 70 | compact | 9.8 | 8 | 1.2 | 2 | 0.5 | 2.2 | 2.1 | 43 | 40 | 0.268 | 0.443 | 2440 | 2160 | 2010 | 1740 |
| 95 | compact | 11.4 | 8 | 1.2 | 2 | 0.5 | 2.3 | 2.2 | 44 | 42 | 0.193 | 0.32 | 2800 | 2520 | 2220 | 1930 |
| 120 | compact | 12.9 | 8 | 1.2 | 2 | 0.5 | 2.3 | 2.3 | 46 | 44 | 0.153 | 0.253 | 3130 | 2850 | 2470 | 2100 |
| 150 | compact | 14.4 | 8 | 1.3 | 2.5 | 0.5 | 2.4 | 2.3 | 49 | 46 | 0.124 | 0.206 | 3670 | 3200 | 2750 | 2280 |
| 185 | compact | 15.9 | 8 | 1.3 | 2.5 | 0.5 | 2.5 | 2.4 | 51 | 47 | 0.0991 | 0.164 | 4150 | 3670 | 2990 | 2510 |
| 240 | compact | 18.3 | 8 | 1.3 | 2.5 | 0.5 | 2.5 | 2.4 | 54 | 50 | 0.0754 | 0.125 | 4910 | 4380 | 3370 | 2840 |
| 300 | compact | 20.5 | 8 | 1.4 | 2.5 | 0.5 | 2.6 | 2.5 | 56 | 53 | 0.0601 | 0.1 | 5680 | 5130 | 3750 | 3190 |
| 400 | compact | 23.2 | 8 | 1.4 | 2.5 | 0.5 | 2.7 | 2.6 | 59 | 56 | 0.047 | 0.0778 | 6670 | 6090 | 4210 | 3620 |
| 500 | compact | 26.4 | 8 | 1.5 | 2.5 | 0.5 | 2.8 | 2.7 | 64 | 59 | 0.0366 | 0.0605 | 8050 | 7350 | 4880 | 4180 |
| 630 | compact | 30.2 | 8 | 1.6 | 2.5 | – | 2.9 | – | 66 | – | 0.0283 | 0.0469 | 9150 | – | 5360 | – |
| 800 | compact | 34.3 | 8 | 1.6 | 2.5 | – | 3 | – | 70 | – | 0.0221 | 0.0367 | 11100 | – | 6190 | – |
| 1000 | compact | 39.3 | 8 | 1.6 | 2.5 | – | 3.2 | – | 75 | – | 0.0176 | 0.0291 | 13650 | – | 7160 | – |
We are China 33kV XLPE Insulated MV Power Cable , Copper Power Cable 400 mm2 500 mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
