35KV XLPE Power Cables

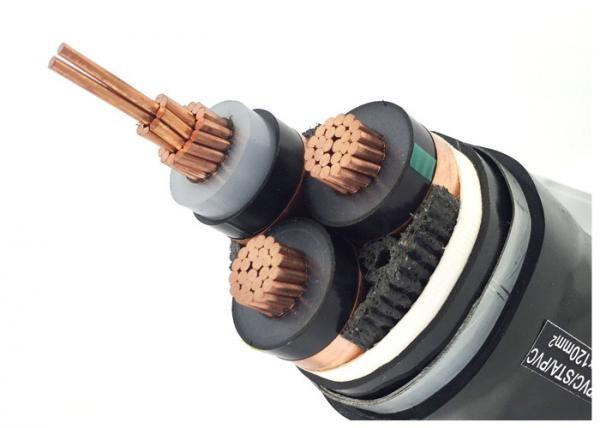

35KV XLPE Power Cables image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Conductor :
Copper or Aluminum
Insulation :
Crosslinked Polyethylene (XLPE)
Armour :
DSTA/SWA/AWA Armoured or Unarmoured
Sheath :
Polyvinyl Chloride (PVC)
Voltage :
3.6KV to 35KV
Core :
1 Core, 3 Core
Standard :
BS/IEC/ASTM/DIN
Application :
Industrial, Underground, Construction etc.
Price :
Negotiable
35KV XLPE Power Cables
1. Medium Voltage XLPE Insulated Electrical Cable Application:
The voltage of MV XLPE electrical cable is up to 35KV. The xlpe cable has many characteristics such as high electric strength, mechanical strength, anti-chemical corrosion etc. So the xlpe cables has been used in indoor, tunnel, canal, power plant etc. for power distribution.
2. Rated Voltage of Medium Voltage XLPE Insulated Electrical Cable:
3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV
3. Construction of Medium Voltage XLPE Insulated Electrical Cable:
Conductor: Copper or Aluminum
Insulation: Crosslinked Polyethylene (XLPE)
Inner sheath: Polyvinyl Chloride (PVC)
Armour: Double Steel Tape (DSTA), Galvanized Steel Wire (SWA), Aluminum Wire Armoured (AWA)
Outer Sheath: Polyvinyl Chloride (PVC)
| Medium Voltage XLPE Insulated Electrical Cable | |||
| XLPE Cable Types | Description | Cores | Nomi Section Area (mm2) |
| Cu/XLPE/PVC | copper core, xlpe insulated, pvc sheathed, electrical cable |
1 core 3 core |
25, 35, |
| Al/XLPE/ PVC | aluminum core, xlpe insulated, pvc sheathed, electrical cable | ||
| Cu/XLPE/STA/PVC | copper core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable | ||
| Al/XLPE/STA/PVC | aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable | ||
| Cu/XLPE/SWA/PVC | copper core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable | ||
| Al/XLPE/SWA/PVC | aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable | ||
4. Characters of Medium Voltage XLPE Insulated Electrical Cable:
a. Max. Long-time operating temperature: 90°C
b. Max. short-circuit temperature: not exceed 250°C in 5 Second
c. Installing temperature of cable: not less than 0°C
d. Unable be laid without the limit of fall with enough mechanical pull. Single core cable can not be laid in iron tube or fixed by circled iron tools around cables.
We are China 35KV XLPE Power Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
