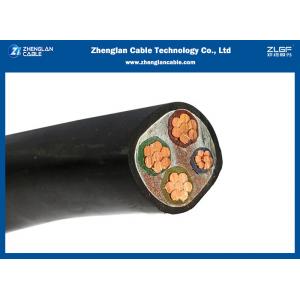

3×25+1x16sqmm Cu/Xlpe/Lsoh Multicore Power Cable AC Cable image

Get a Quote Email to us

1.1kv 3×25+1x16sqmm cu/xlpe/lsoh multicore power cable​

Application:

1.1kv 3×25+1x16sqmm cu/xlpe/lsoh multicore power cable are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706-2008

Other standards such as BS7870,DIN and ICEA upon request

1.1kv 3×25+1x16sqmm cu/xlpe/lsoh multicore power cable​ Construction:

Conductors: Copper , round standed or Shaped, Class 2 to IEC 60228, BS EN 60228.

Core identification
without yellow-green core
2-cores: brown, blue
3-cores: brown, black, grey
4-cores: brown, black, grey, blue
with yellow-green core
3-cores: brown, blue, yellow-green
4-cores: brown, black, grey, yellow-green
5-cores: brown, black, grey, yellow-green, blue

Noted: Insulation color as per standards or customer requirement.

Insulation:

XLPE Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Outer Sheath:

Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths:

1.1kv 3×25+1x16sqmm cu/xlpe/lsoh multicore power cable​​ can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

1.1kv 3×25+1x16sqmm cu/xlpe/lsoh multicore power cable​​ Parameters:

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² (3)mm (1)mm (3)mm (1)mm mm mm Kg/Km
3x 16/10 5.0 4.0 0.7 0.7 1.8 20.0 825
3x 25/16 6.3 5.0 0.9 0.7 1.8 22.8 1235
3x 35/16 7.4 5.0 0.9 0.7 1.8 24.8 1565
3x 50/25 8.8 6.3 1.0 0.9 1.8 28.5 2220
3x 70/35 10.6 7.4 1.1 0.9 1.9 32.0 2925
3x 95/50 12.4 8.8 1.1 1 2.1 37.5 3525
3×120/70 14.0 10.6 1.2 1.1 2.2 41.5 4940
3×150/70 15.5 10.6 1.4 1.1 2.3 45.0 6250
3×185/95 17.4 12.4 1.6 1.1 2.5 50.5 7450
3×240/120 20.3 14.0 1.7 1.2 2.6 56.0 9500
3×300/150 22.7 15.5 1.8 1.4 2.8 64.5 12100
3×400/185 25.4 17.4 2.0 1.6 3.1 70.0 18900

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
4×1.5 1.38 0.7 1.8 11 170
4×2.5 1.76 0.7 1.8 12 230
4×4 2.25 0.7 1.8 14 305
4×6 2.76 0.7 1.8 15.5 400
4×10 4.0 0.7 1.8 18 585
4×16 5.0 0.7 1.8 20 835
4×25 6.3 0.9 1.8 22 1210
4×35 7.4 0.9 1.8 24.5 1670
4×50 8.8 1.0 1.8 26.5 2250
4×70 10.6 1.1 2.0 32 3015
4×95 12.4 1.1 2.1 36.5 4085
4×120 14.0 1.2 2.3 40.5 5320
4×150 15.5 1.4 2.4 44.5 44.5 6510
4×185 17.4 1.6 2.6 51 8050
4×240 20.3 1.7 2.8 58.5 58.5 10520
4×300 22.7 1.8 3 64.5 13130
4×400 25.4 2.0 3.3 73.5 16850
