4 Core Copper XLPE Armoured Underground Power Cable 95mm 0.6kv 1KV

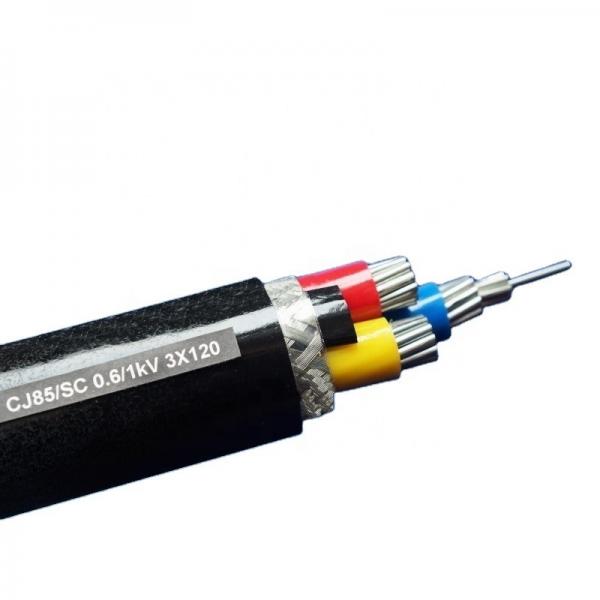

4 Core Copper XLPE Armoured Underground Power Cable 95mm 0.6kv 1KV image
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Name :
Copper Conductor Cable
Conductor Material :
Copper
standard :
IEC 60502-1
Outer Sheath :
XLPE
Color :
Customized
Type :
XLPE Underground Cable
0.6/1KV 4 Core 95mm Copper XLPE Armoured Underground Power Cable
1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.
3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 25 – 630mm2
6) Insulation: XLPE
7) No. of cores: 1, 3
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c:
| Voltage rating for XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
| 1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
| 0.6/1 kV | 1×4 mm2 | 2×4 mm2 | 3×4 mm2 | 3×4 mm2 + 1×2.5mm2 | 4×4 mm2 | 3×4 mm2 + 2×2.5mm2 | 4×4 mm2 + 1×2.5mm2 | 5×2.5 mm2 |
| 1×6 mm2 | 2×6 mm2 | 3×6 mm2 | 3×6 mm2 + 1×4 mm2 | 4×6 mm2 | 3×6 mm2 + 2×4 mm2 | 4×6 mm2 + 1×4 mm2 | 5×4 mm2 | |
| 1×10 mm2 | 2×10 mm2 | 3×10 mm2 | 3×10 mm2 + 1×6 mm2 | 4×10 mm2 | 3×10 mm2 + 2×6 mm2 | 4×10 mm2 + 1×6 mm2 | 5×6 mm2 | |
| 1×16 mm2 | 2×16 mm2 | 3x16mm2 | 3×16 mm2 + 1×10 mm2 | 4×16 mm2 | 3×16 mm2 + 2×10 mm2 | 4×16 mm2 + 1×10 mm2 | 5×10 mm2 | |
| 1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3×25 mm2 + 1x16mm2 | 4×25 mm2 | 3×25 mm2 + 2x16mm2 | 4×25 mm2 + 1x16mm2 | 5×16 mm2 | |
| 1×35 mm2 | 2×35 mm2 | 3x 35 mm2 | 3×35 mm2 + 1x16mm2 | 4×35 mm2 | 3×35 mm2 + 2x16mm2 | 4×35 mm2 + 1x16mm2 | 5×25 mm2 | |
| 1×50 mm2 | 2×50 mm2 | 3x 50 mm2 | 3×50 mm2 + 1x25mm2 | 4×50 mm2 | 3×50 mm2 + 2x25mm2 | 4×50 mm2 + 1x25mm2 | 5×35 mm2 | |
| 1×70 mm2 | 2×70 mm2 | 3x 70 mm2 | 3×70 mm2 + 1x35mm2 | 4×70 mm2 | 3×70 mm2 + 2x35mm2 | 4×70 mm2 + 1x35mm2 | 5×50 mm2 | |
| 1×95 mm2 | 2×95 mm2 | 3x 95 mm2 | 3×95 mm2 + 1x50mm2 | 4×95 mm2 | 3×95 mm2 + 2x50mm2 | 4×95 mm2 + 1x50mm2 | 5×70 mm2 | |
| 1×120 mm2 | 2×120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4×120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5×95 mm2 | |
| 1×150 mm2 | 2×150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4×150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
| 1×185 mm2 | 2×185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4×185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
| 1×240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4×240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
| 1×300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4×300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
| 1×400 mm2 | ||||||||
| 1×500 mm2 | ||||||||
Advantages of XLPE cable:
XLPE cable has a higher long-term working temperature and larger rated current, and under the same environment, the size (normal cross section) of XLPE cable may be 1 or 2 smaller than PVC cable. These not only improve the quality and performance of the product, but also reduce the production cost of the cable. Steel tape armored cables for armored cables can enhance the mechanical properties of the cables, and the cables can withstand external mechanical pressure.
Steel belt armor/steel foil armor, steel wire armor/steel wire armor/SWA. Steel tape armored cable model: VV22, VV23, VLV22, VLV23, YJ V22, YJV23, YJLV22, YJLV23, ZR-VV22, NH-VV2 2, WDZ-YJV22, WDZ-YJV23, WDZ-YJY22
We are China 4 Core Copper XLPE Armoured Underground Power Cable 95mm 0.6kv 1KV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 95mm Underground Power Cable, Copper 4 Core Xlpe Cable, XLPE Armoured Underground Power Cable, xlpe insulated cable
