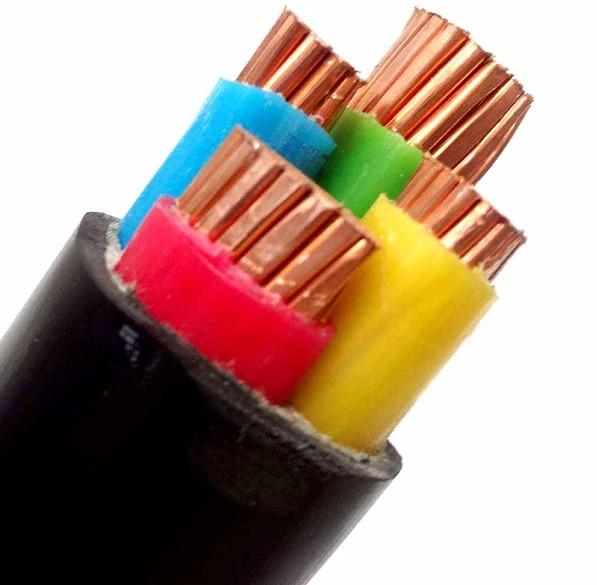

4 Core XLPE Insulated 4mm2 6mm2 PVC Insulated Cables
4 Core XLPE Insulated 4mm2 6mm2 PVC Insulated Cables image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Conductor Material :
Anneal Copper or Hard Drawn Aluminum
Insulation :
Polyvinyl Chloride (PVC) Insulated
Outer Sheath :
Polyvinyl Chloride (PVC) Sheathed
Armour :
DSTA/SWA/AWA Armored or Unarmored
Rated Voltage :
0.6/1KV
Cross Section Size :
0.75mm2-1000mm2
Standards :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Colour of Outer Sheath :
Black or Customized
Application :
Construction, Industrial, Underground, Power Station
Feature :
Abrasion-resistant
Price :
Negotiable
4 Core XLPE Insulated 4mm2 6mm2 PVC Insulated Cables
Rated Voltage:
0.6/1kv
Number of cores:
1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core
Cross Section Area of Conductor:
0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm, 400mm2, 500mm, 630mm2, 800mm2, 1000mm2
PVC Insulated Electrcial Cable Application:
PVC insulated cables is characterized with high mechanical strength, strong resistance to environmental stress, excellent electrical properties, powerful resistance to chemical attack. In addition, the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.
PVC Insulated Electrcial Cable Service Performance:
1) Rated voltage: 0.6/1KV
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C.
4) Minimum bending radius:
Bending radius≥4D as cable overall diameter≤25mm
PVC Insulated Electrical Cable Types:
| PVC Insulated Cable Types | Description | Cores | Nomi Section Area |
| Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, electric cable |
1 core 2 core 3 core 4 core 5 core 3+1 core 3+2 core 4+1 core |
1.5~1000mm2 |
| Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, electric cable |
||
| Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | 4~1000mm2 | |
| Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | ||
| Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| ZR-Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, flame retardant, electric cable | 1.5~1000mm2 | |
| ZR-Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | 4~1000mm2 | |
| ZR-Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
||
| ZR-Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
PVC Insulated Electrical Cable Technical Data:
We are China 4 Core XLPE Insulated 4mm2 6mm2 PVC Insulated Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
