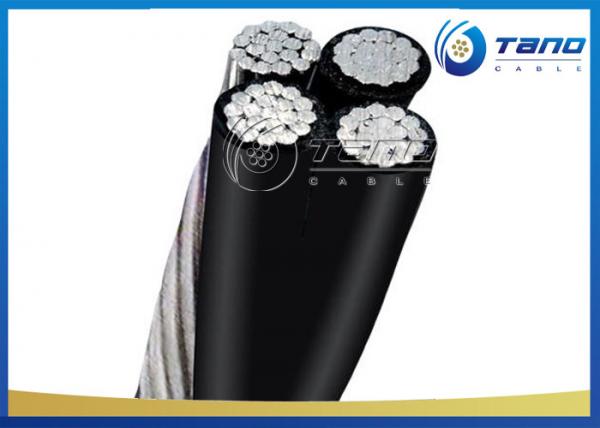

4 Core XLPE Insulated Overhead Service Drop Cable Aluminum Coonductor
4 Core XLPE Insulated Overhead Service Drop Cable Aluminum Coonductor image
Brand Name :
TANO CABLE
Model Number :
Service drop cable
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
600KM per month
Delivery Time :
Within 20 working days
Packaging Details :
by wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Packing :
Wooden drum
Core :
4 cores
Coonductor :
Aluminum
Insulation :
PE,XLPE
Voltage :
0.6/1kV
Key words :
Overhead Service Drp
4 Core XLPE Insulated Quadruplex ABC Cable Overhead Power Cable
Application
Primarily used for overhead service drop applications,such as:street lighting.outdoor lighting and temporary service for construction.To be used at voltages of 600v phase-to-phase or less and at at conductor temperatures not to exceed 75℃ for polyethylene(PE) insulated conductors or 90℃ cross-linked polyethylene(XLPE) insulated conductors.
Standards
ASTM – B-230 Aluminum Wire,1350-H19 for electrical purposes ASTM – B-231 Aluminum Conductors, Concentric-Lay-Stranded ASTM – B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced ICEA S-61-402 and ICEA S66-524
Technical Specification
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Morochuca | 6 | 1 | 45 | 6 | 43252 | 1190 | 145 | 145 | 75 | 60 |
| Chola | 6 | 7 | 45 | 6 | 43252 | 1190 | 153 | 153 | 75 | 60 |
| Morgan | 4 | 1 | 45 | 4 | 43252 | 1860 | 217 | 217 | 100 | 80 |
| Hackney | 4 | 7 | 45 | 4 | 43252 | 1860 | 229 | 229 | 100 | 80 |
| Palomino | 2 | 7 | 45 | 2 | 43252 | 2850 | 347 | 347 | 135 | 105 |
| Costena | 1/0 | 9 | 60 | 1/0 | 43252 | 4380 | 549 | 549 | 180 | 140 |
| Grullo | 2/0 | 11 | 60 | 2/0 | 43252 | 5310 | 677 | 677 | 205 | 160 |
| Suffolk | 3/0 | 17 | 60 | 3/0 | 43252 | 6620 | 837 | 837 | 235 | 185 |
| Appaloosa | 4/0 | 18 | 60 | 4/0 | 43252 | 8350 | 1038 | 1038 | 275 | 210 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 43252 | 8350 | 1494 | 1494 | 370 | 280 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 43118 | 8680 | 1568 | 1568 | 370 | 280 |
| *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP). +Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun. |
||||||||||
Structure
Construction
Conductor:
| Phase Conductor | Bare Neutral Messenger |
| AAC | AAC |
| ACSR | |
| Alloy |
Insulation material:
PE or XLPE or PVC or as the customer's demands.
Packing
For the Aerial Bundled Cable(ABC Cable) (aluminum or copper conductor material),we usually use the standard wooden drum to package as the belowing picture.We also can design the different package types according to the customer's requirements.
We are China 4 Core XLPE Insulated Overhead Service Drop Cable Aluminum Coonductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
